Metal Roofs

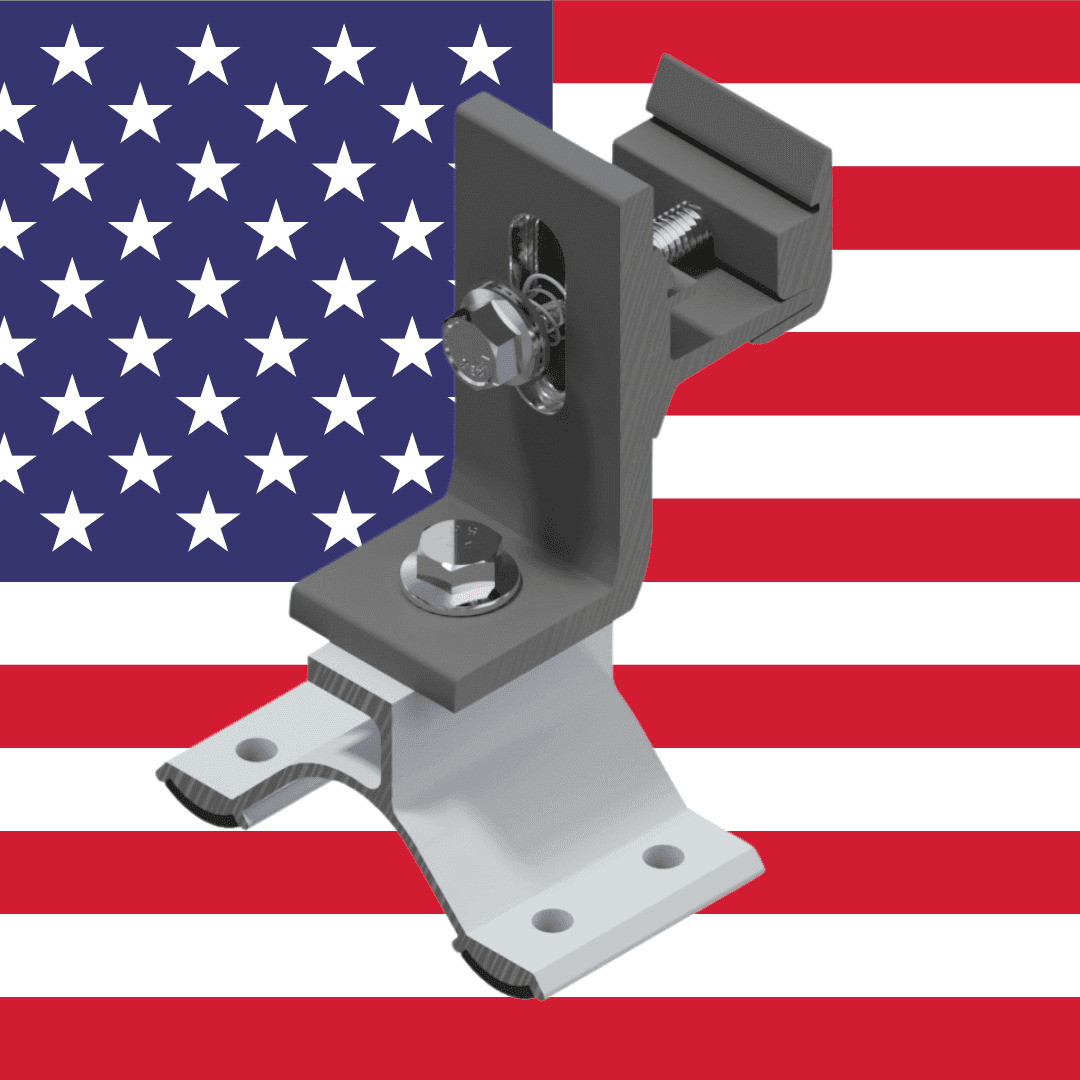

The SnapNrack All Purpose L Foot featuring the S-5! CorruBracket 100 delivers a heavy-duty, watertight mounting solution for corrugated metal roofs. Designed for strength and versatility, this bracket securely attaches to 7/8” and 3/4” rib pitch U.S. corrugated roofing, making it ideal for rail-based solar systems, snow guards, and other structural applications. Each CorruBracket fastens directly through the roof panel into the underlying deck or purlin, ensuring maximum load capacity and long-term durability. Factory-applied butyl sealant eliminates the need for field-applied sealants, preventing leaks and protecting against UV exposure. Preassembled with SnapNrack’s All Purpose L Foot, this partnership with S-5! saves installers time and simplifies project planning—delivering proven performance and reliability for metal roof installations.

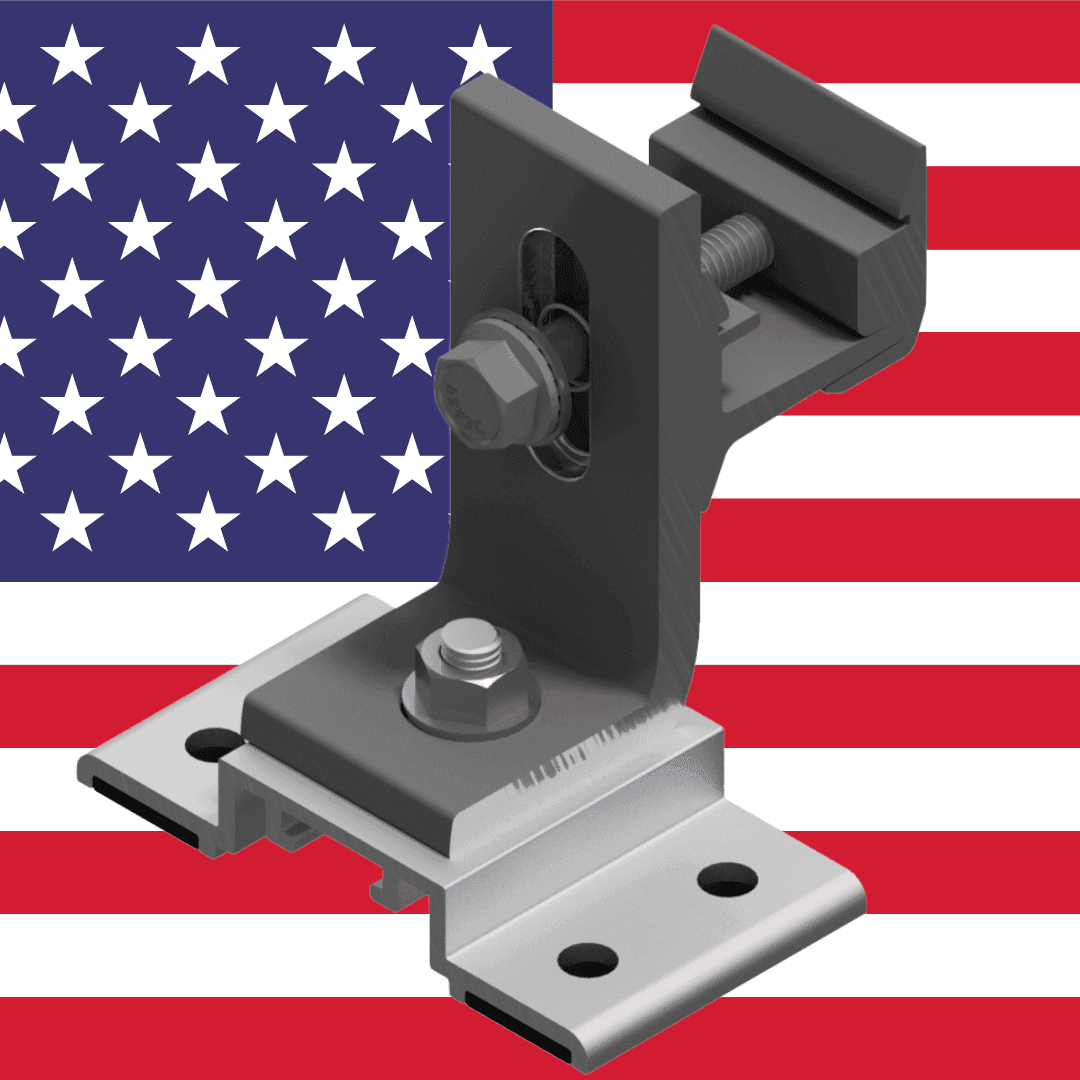

The SnapNrack All Purpose L Foot featuring the S-5! SolarFoot delivers a simple, cost-effective solution for mounting solar PV systems on exposed-fastened metal roofs like AG-Panel or R-Panel. Designed to attach directly to the roof deck or structure, the SolarFoot provides a strong, low-profile base for rail-mounted systems—without the mess or guesswork of field-applied sealants. Each bracket comes preassembled with SnapNrack’s All Purpose L Foot, reducing install time and simplifying order management. The stainless integrated stud and serrated hex-flange nut keep the L Foot securely in place, while the low center of gravity minimizes stress on the roof. Built through a trusted partnership between SnapNrack and S-5!, this durable, watertight solution gives installers confidence and speed on every metal roof project.

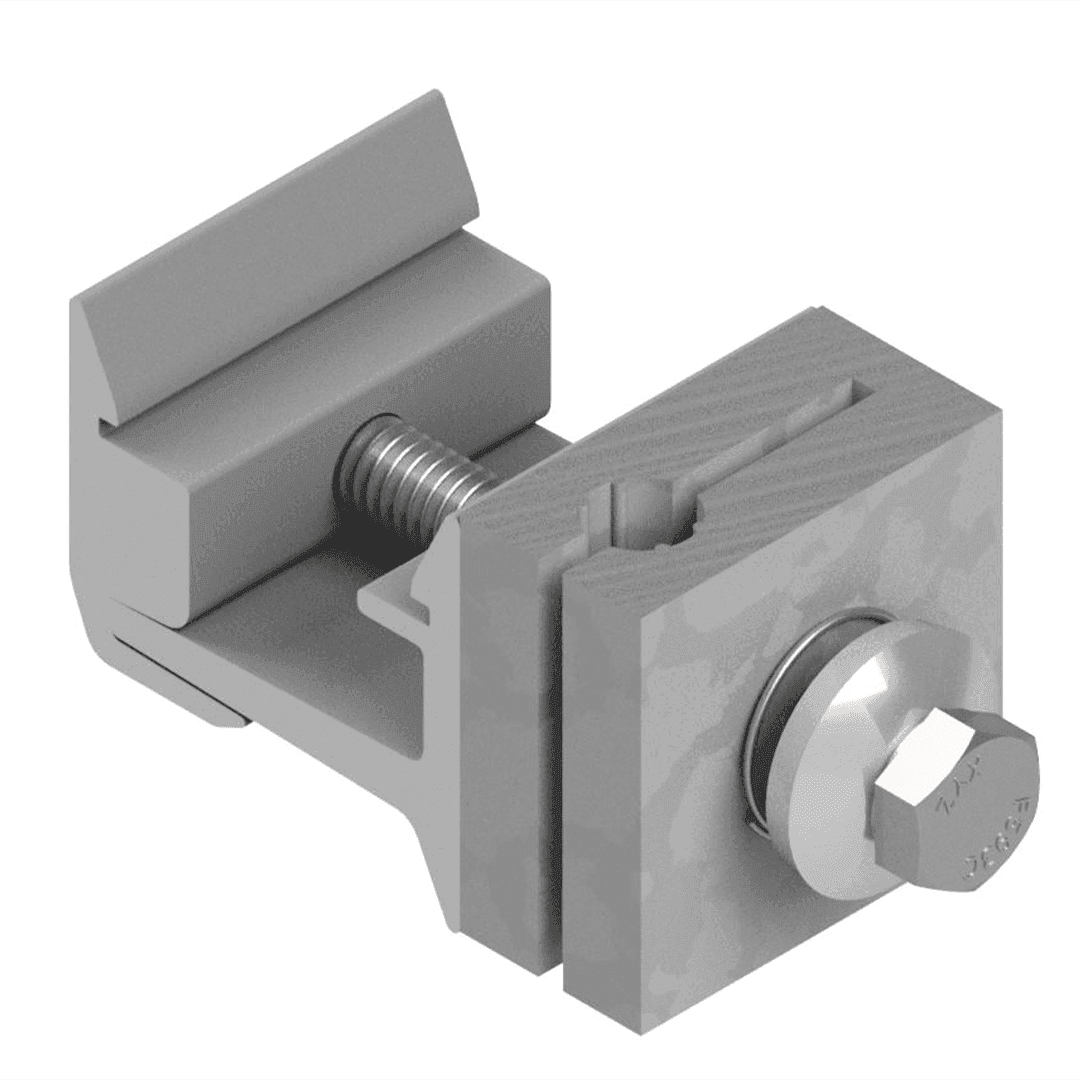

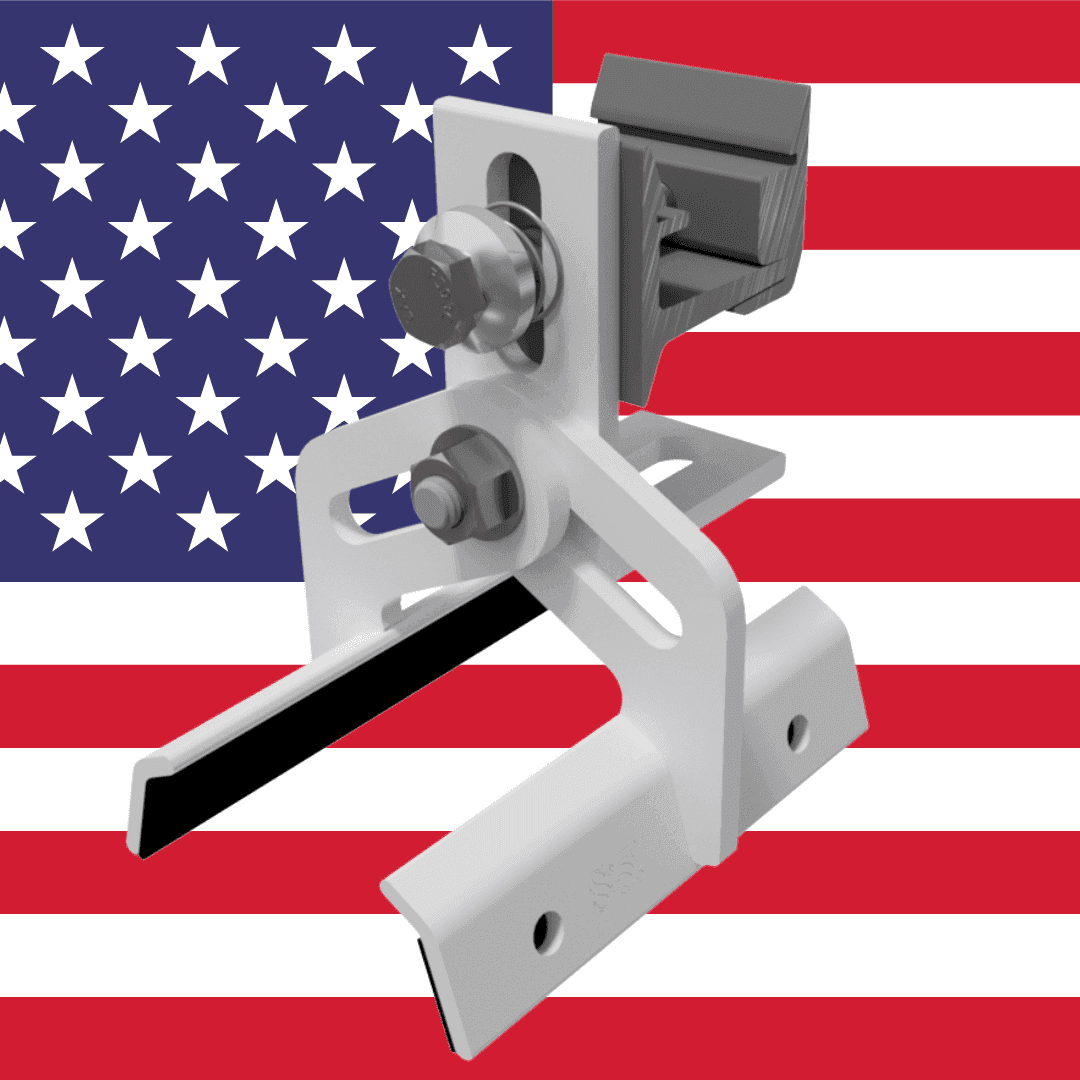

The SnapNrack Ultra Rail Mounting Clamp featuring the S-5! ProteaBracket delivers a fast, flexible solution for trapezoidal-rib metal roof installations. Designed to fit a wide range of profiles—including insulated metal panels (IMPs)—this bracket attaches directly to the sheet crown without penetrating the structure, ensuring a secure, watertight seal with its factory-applied EPDM pad. The adjustable base adapts to varying rib widths, heights, and angles, offering unmatched versatility for both side-bolted and bottom-bolted rail mounting. Preassembled with SnapNrack’s Ultra Rail Clamp, it arrives ready for quick installation—saving installers time on the roof and simplifying order management. Backed by the trusted partnership of SnapNrack and S-5!, the ProteaBracket also pairs seamlessly with the PVKIT® for rail-less applications, delivering reliable performance on every face-fastened metal roof.

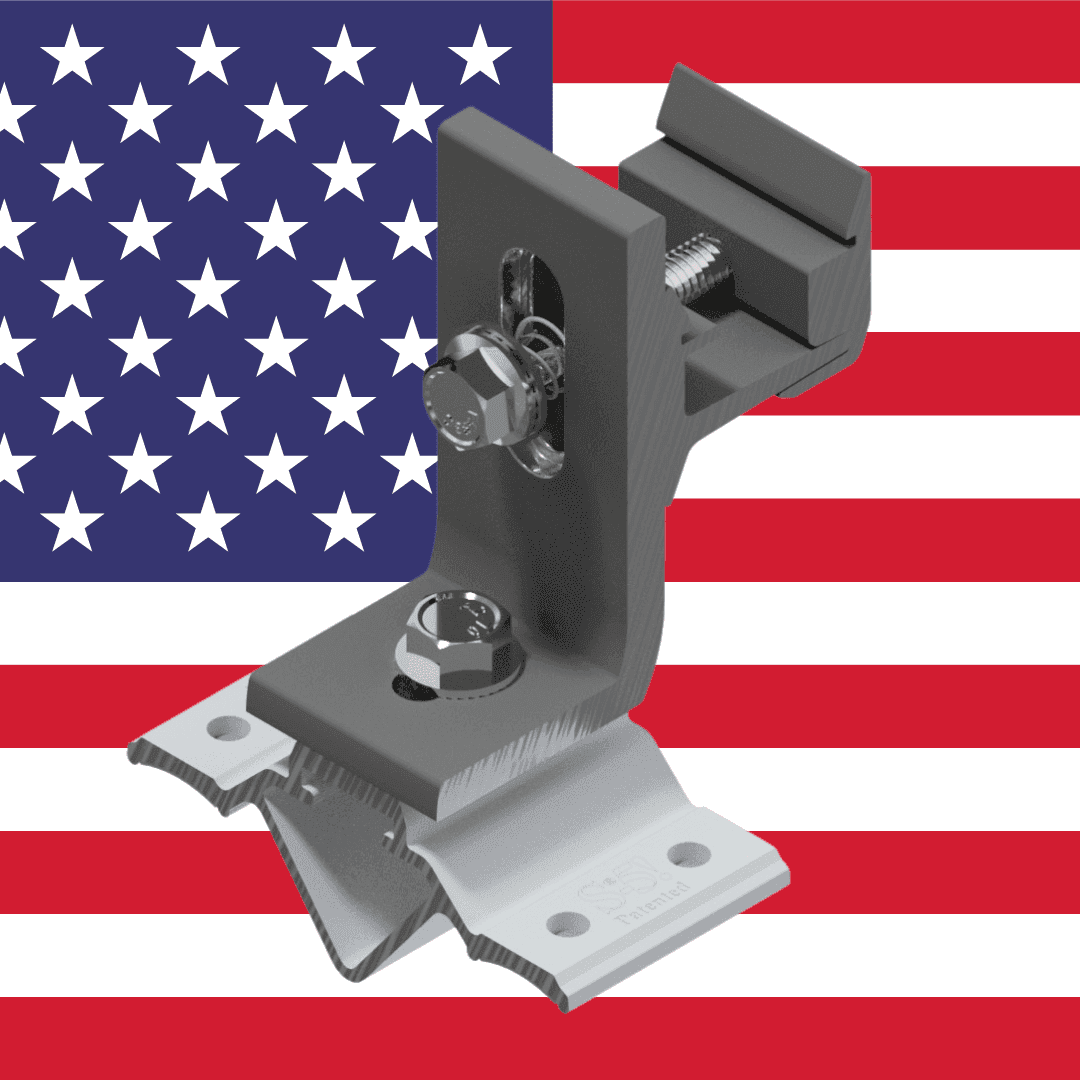

The SnapNrack All Purpose L Foot featuring the S-5! CorruBracket 100T delivers a secure, low-profile attachment solution for corrugated metal roofs. Designed to fasten at the crest of the corrugation, it keeps the drainage plane free of penetrations while maintaining a strong, watertight seal. This top-fixed bracket supports a range of applications—from PV rail systems to walkways and utilities—and can attach directly to the roof sheet or into the underlying deck or purlin for added strength. The “V” configuration reinforces stability under heavy loads, preventing rib deformation. Preassembled with SnapNrack’s All Purpose L Foot, this partnership with S-5! saves installers time on the roof and simplifies order management, offering a dependable solution for any corrugated metal roof installation.

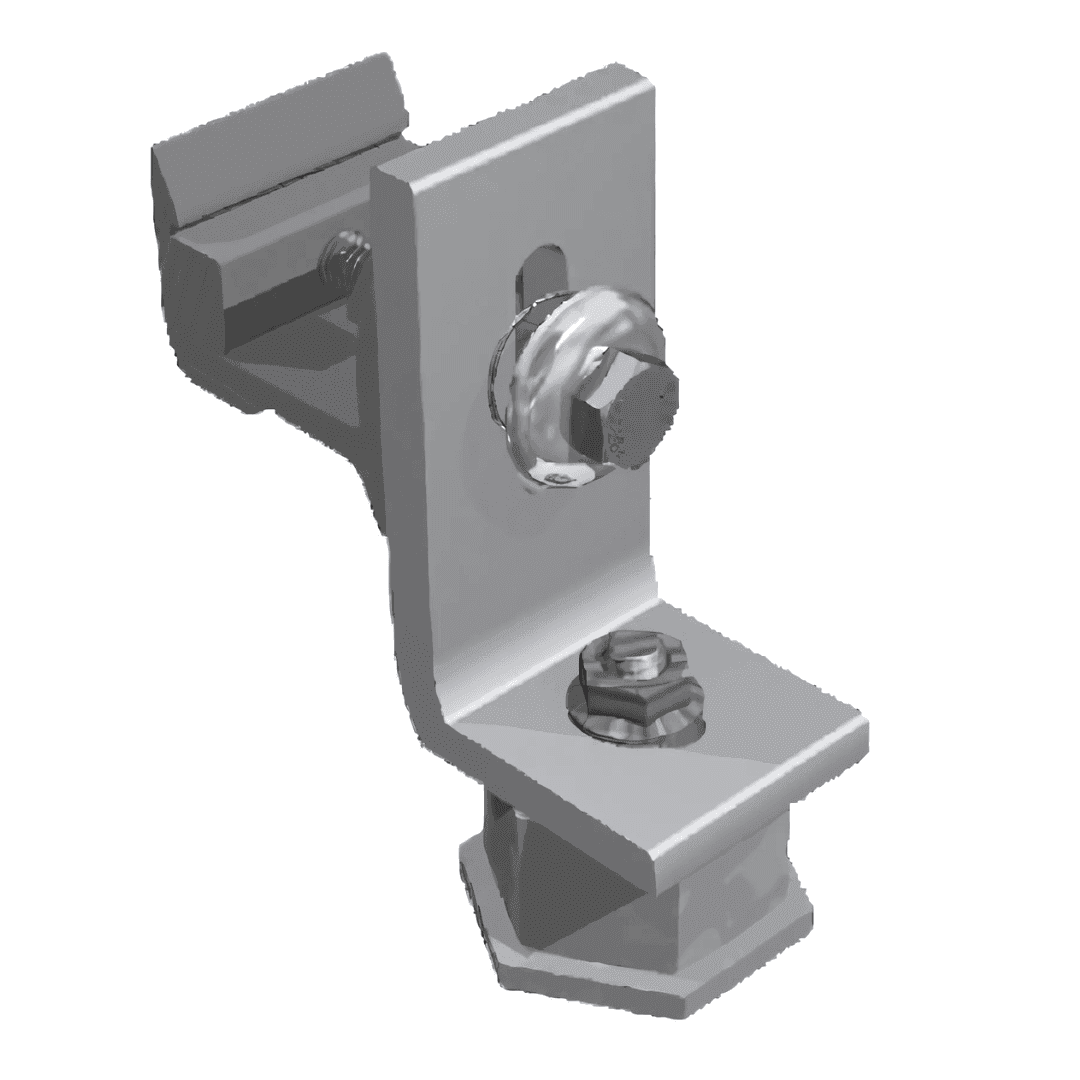

The SnapNrack All Purpose L Foot featuring the S-5! S-5-N Mini delivers a reliable, non-penetrating mounting solution for nail strip standing seam metal roofs. Engineered with angled setscrews and an innovative insert, the S-5-N Mini provides a superior grip on popular 1" nail strip profiles like Taylor Metals’ Easy Lock™, ASC Skyline Roofing®, and New Tech Machinery’s FF100—without compromising the roof’s integrity. This lightweight clamp is ideal for solar and other light-duty attachments where a secure, watertight hold is essential. Each unit comes preassembled with SnapNrack’s All Purpose L Foot, simplifying installation and reducing setup time. As part of SnapNrack’s partnership with S-5!, the S-5-N Mini ensures fast, dependable performance backed by industry-leading testing and engineering for nail strip metal roof systems.

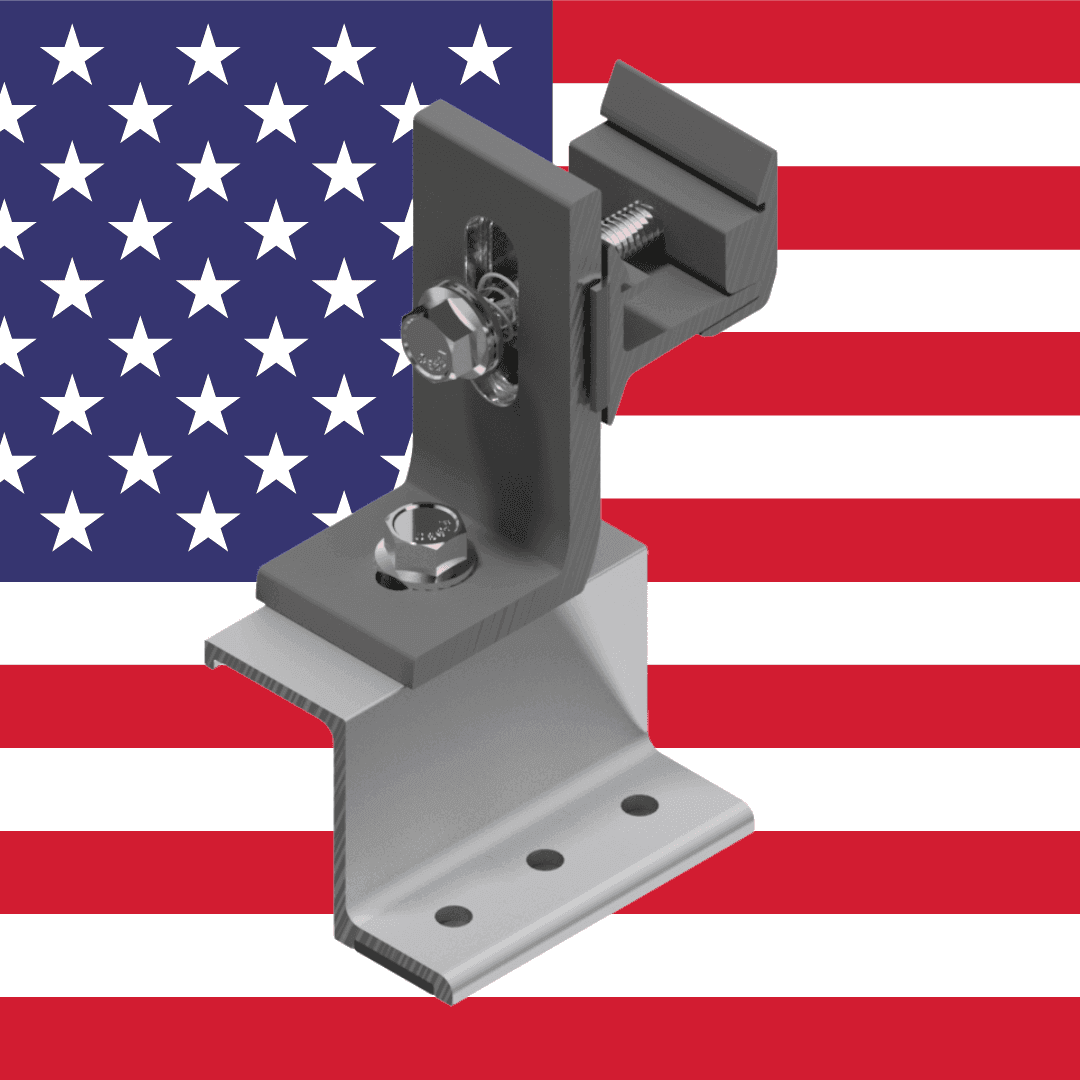

The SnapNrack All Purpose L Foot featuring the S-5! VersaBracket-47 provides a versatile, cost-effective attachment solution for bottom-fixed, trapezoidal, exposed-fastened metal roofs. Designed for mounting solar PV systems, ColorGard snow retention, and other utilities, the VersaBracket fastens directly through the roof into the deck or structure for long-lasting, watertight performance. With a 1" mounting slot for easy adjustability and compatibility with the S-5! PVKIT® for rail-less (direct-attach™) or bottom-bolted rail mounting, VersaBracket-47 offers flexibility across a range of applications. Preassembled with SnapNrack’s All Purpose L Foot, it saves installers time and simplifies ordering while ensuring a strong, clean install on “screw-down” metal roofs. This trusted collaboration between SnapNrack and S-5! delivers durability, versatility, and proven reliability for metal roof installations.

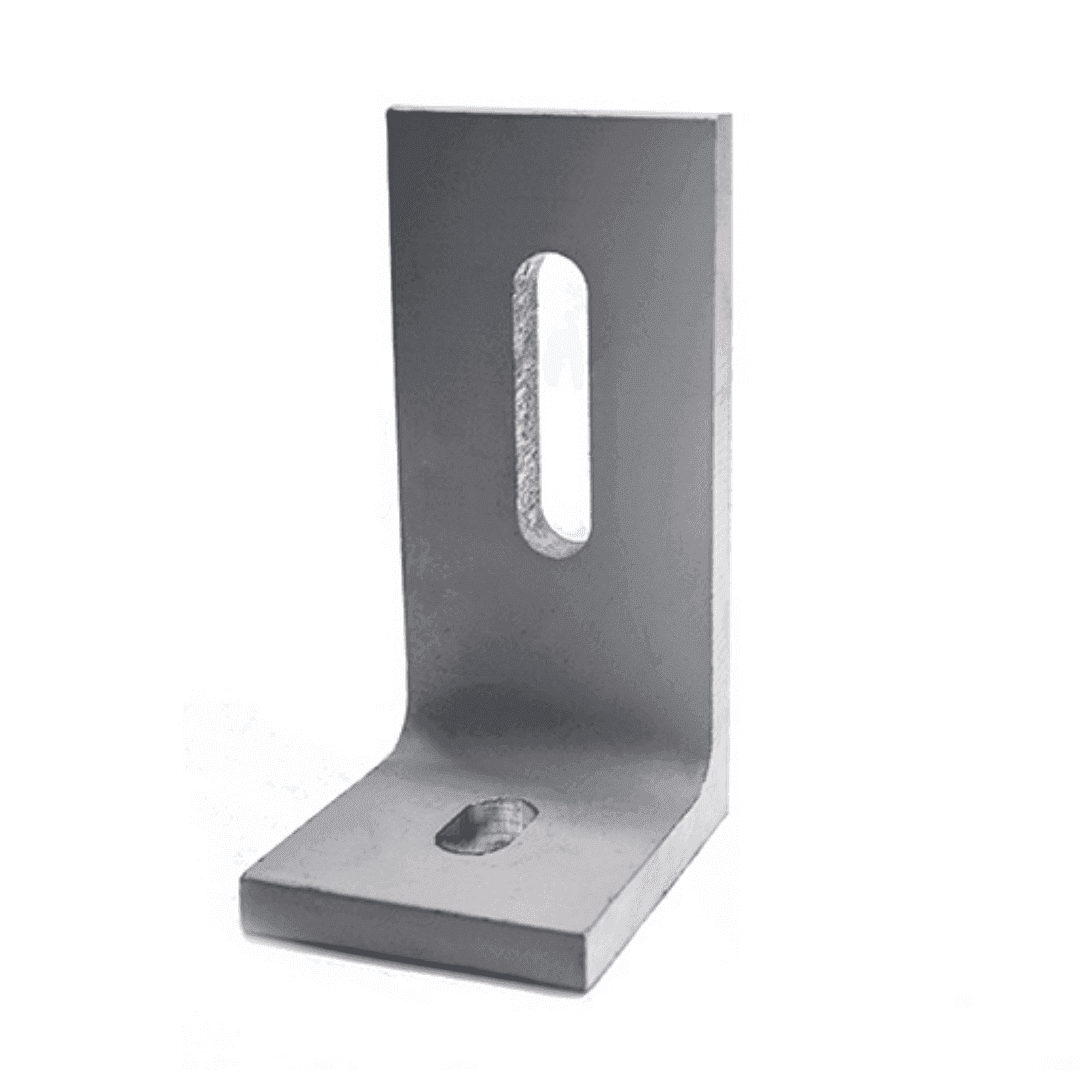

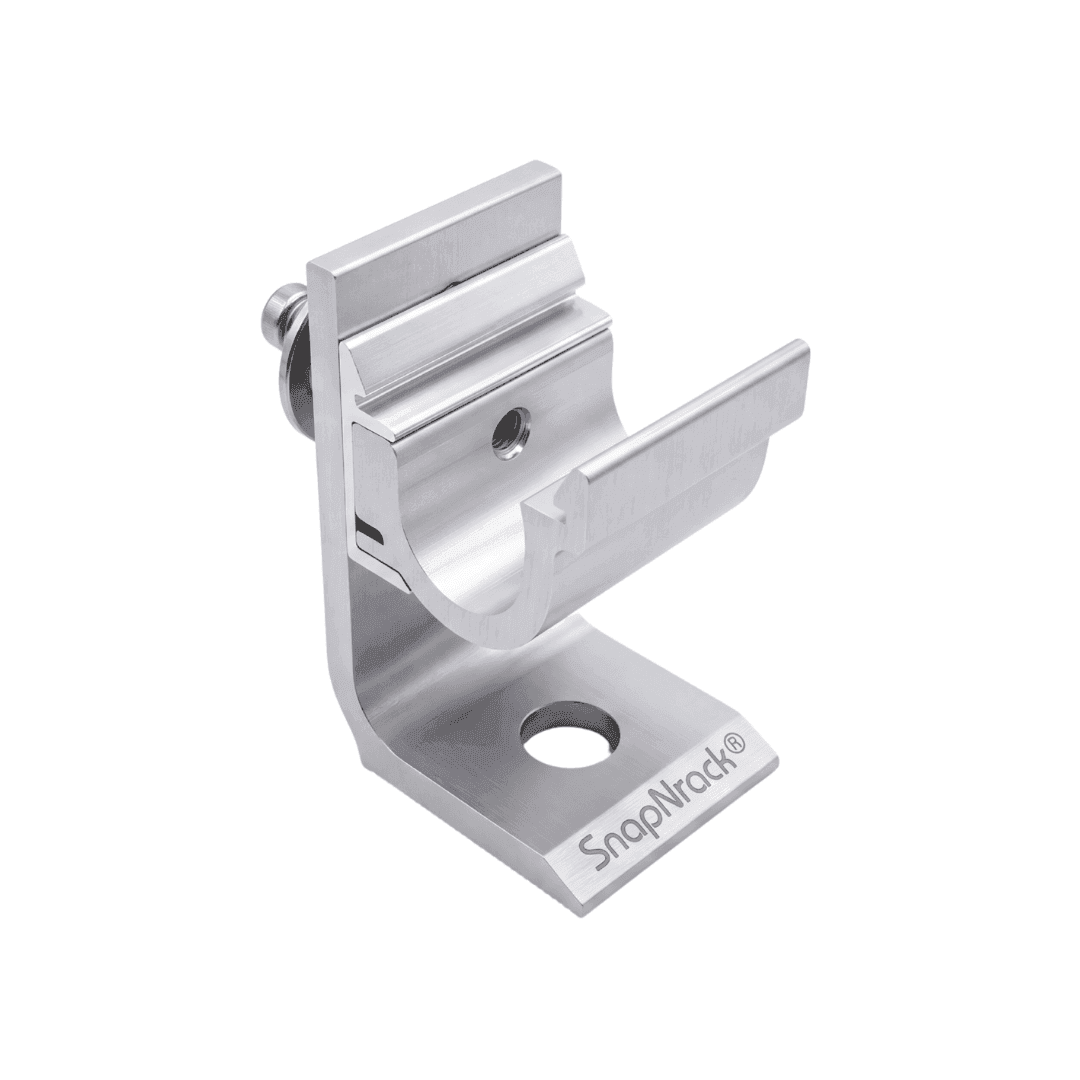

The All Purpose L Foot is a standard 90 degree L foot that has the SnapNrack UltraRail mounting hardware preassembled.
