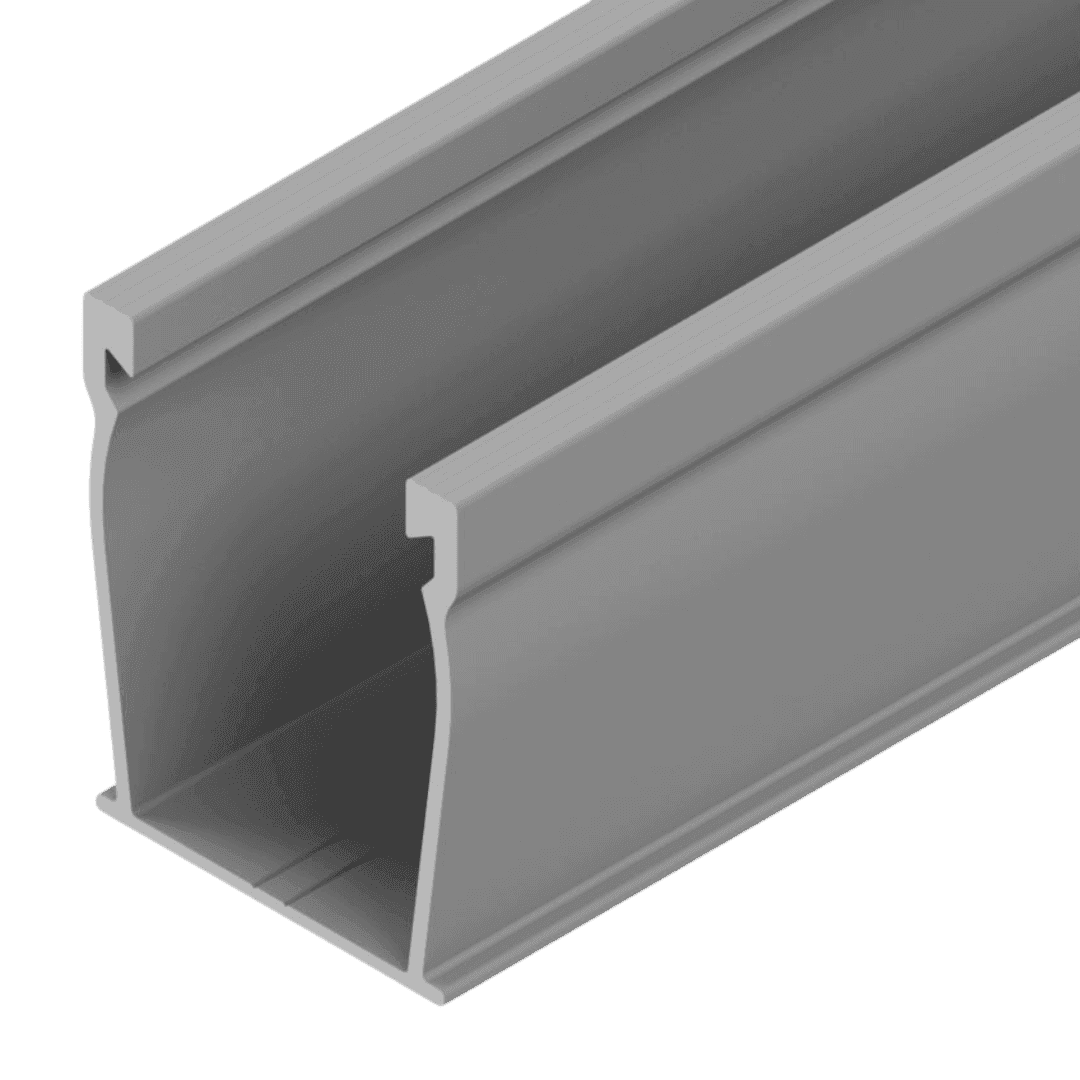

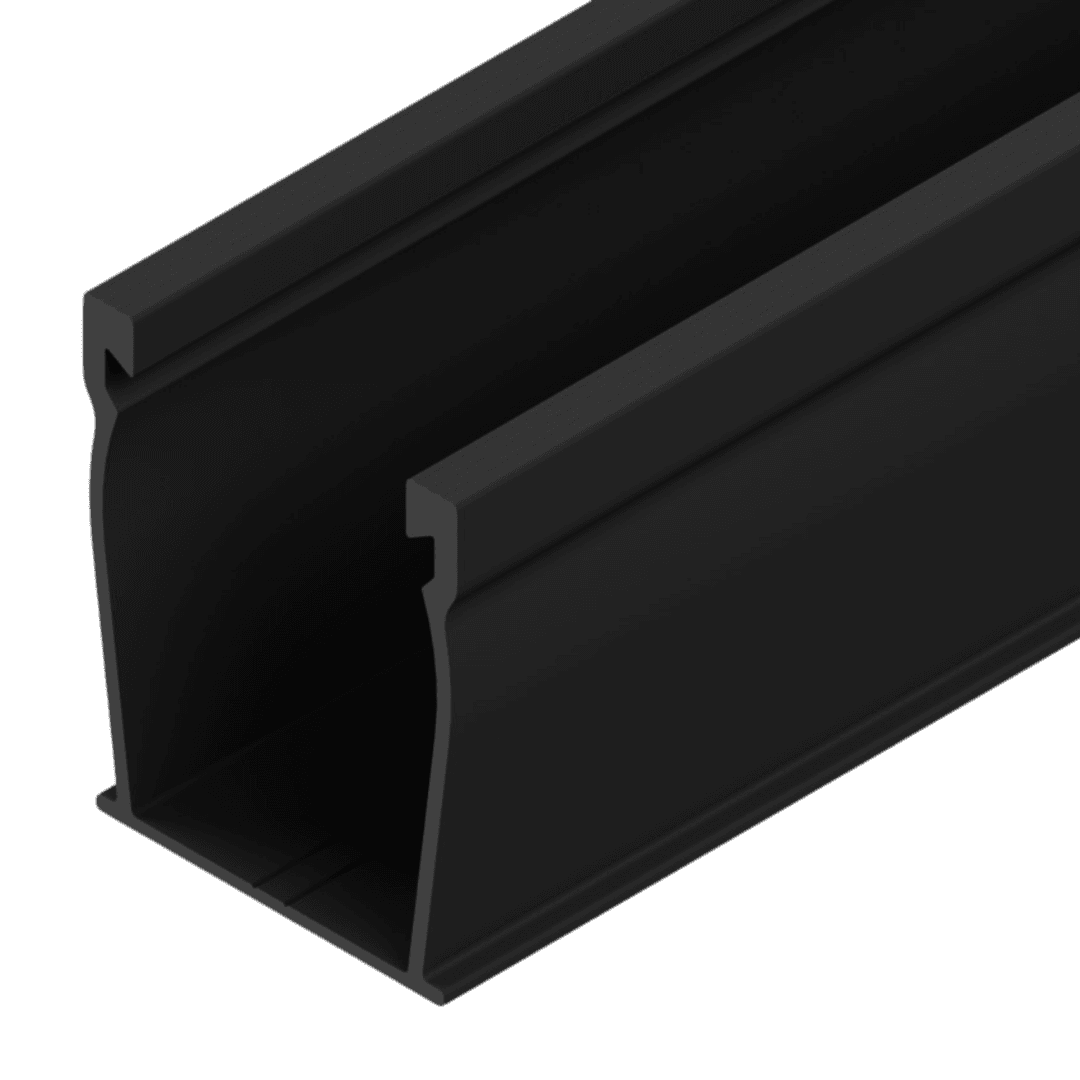

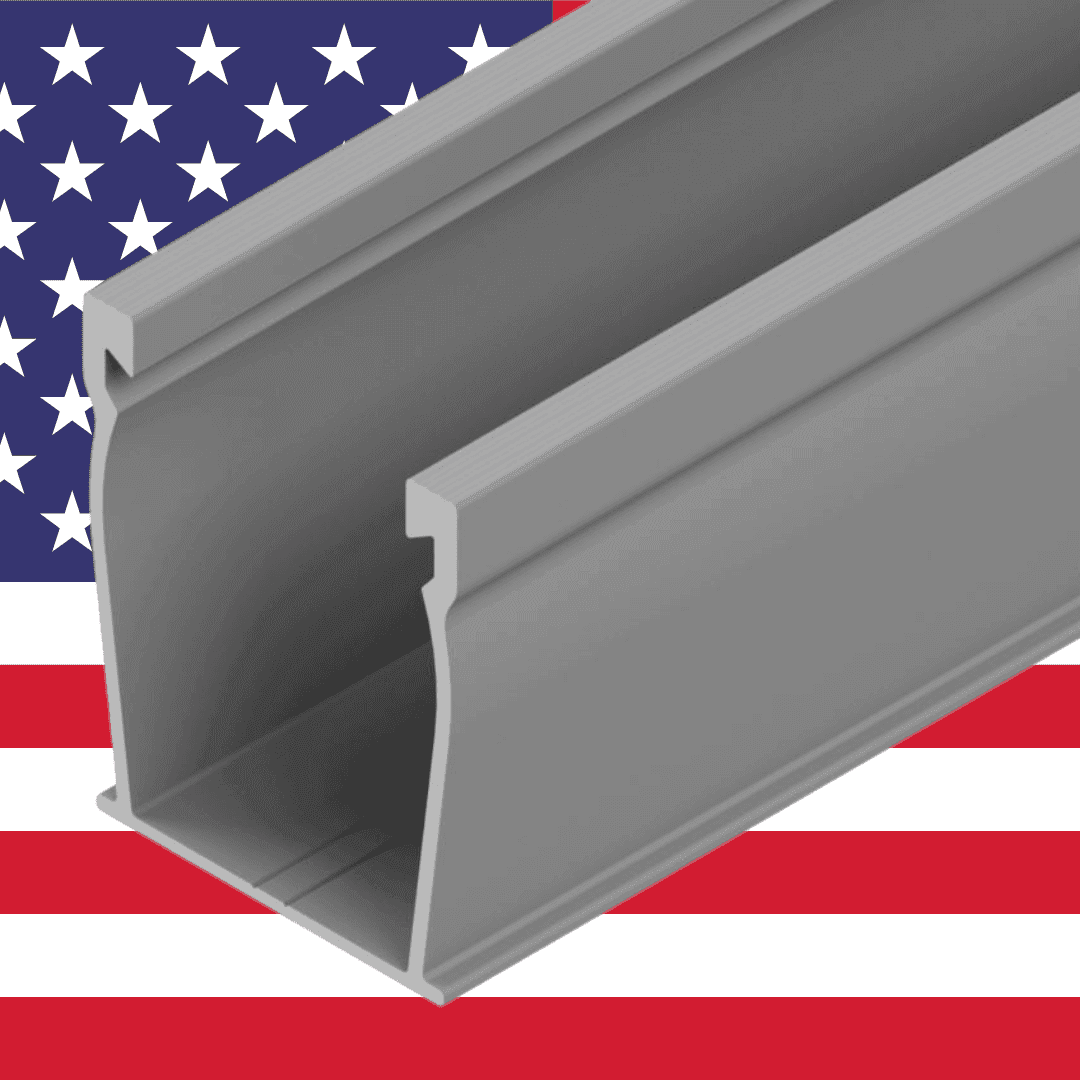

UR-45 Rail and Components

Key Features:

Fast, Snap-In Installation: Rails quickly drop into mounts and splice securely with a simple snap-together design, minimizing tools and installation time.

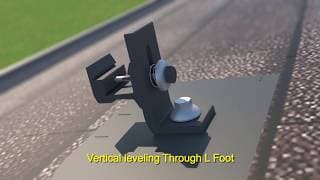

Superior Leveling: Spring-loaded L Feet allow full adjustability, ensuring perfectly leveled arrays across uneven roof surfaces.

Integrated Wire Management: Large top rail channels accommodate conductors, with a range of wire clamps, wire retention clips, and conduit supports for clean, protected wiring.

Flexible Compatibility: Supports all SnapNrack Series 100 roof attachments and accessory components, including MLPE mounting kits for microinverters and optimizers.

Strong & Reliable: Pre-assembled hardware and innovative designs like the Umbrella Lag Screw with flashing ensure long-term system durability and watertight protection.

Installation Overview:

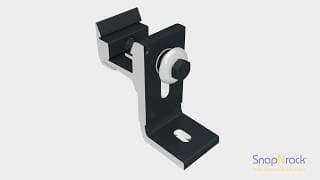

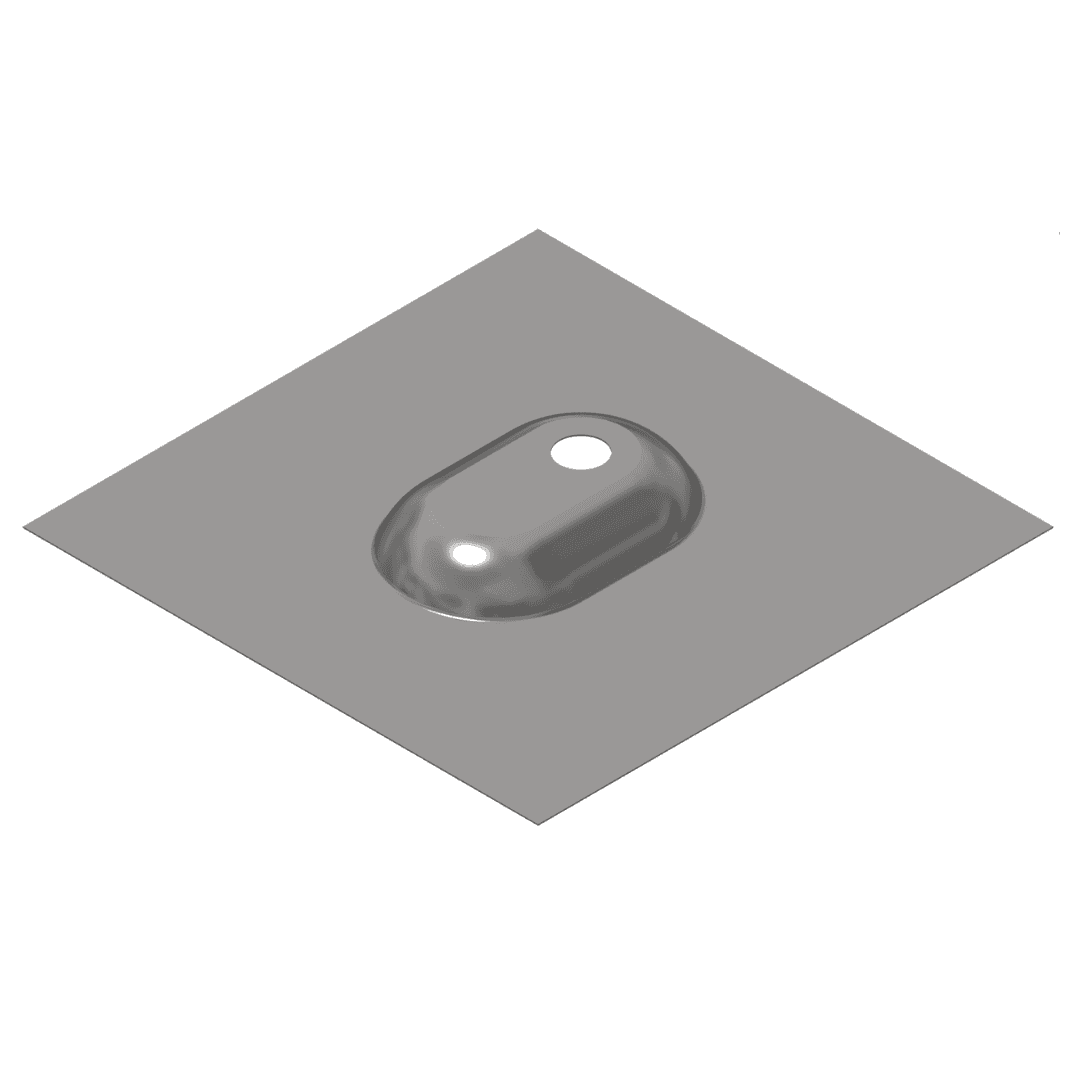

Secure roof attachments using SnapNrack’s Umbrella Lag and L Foot system with flashing for waterproofing.

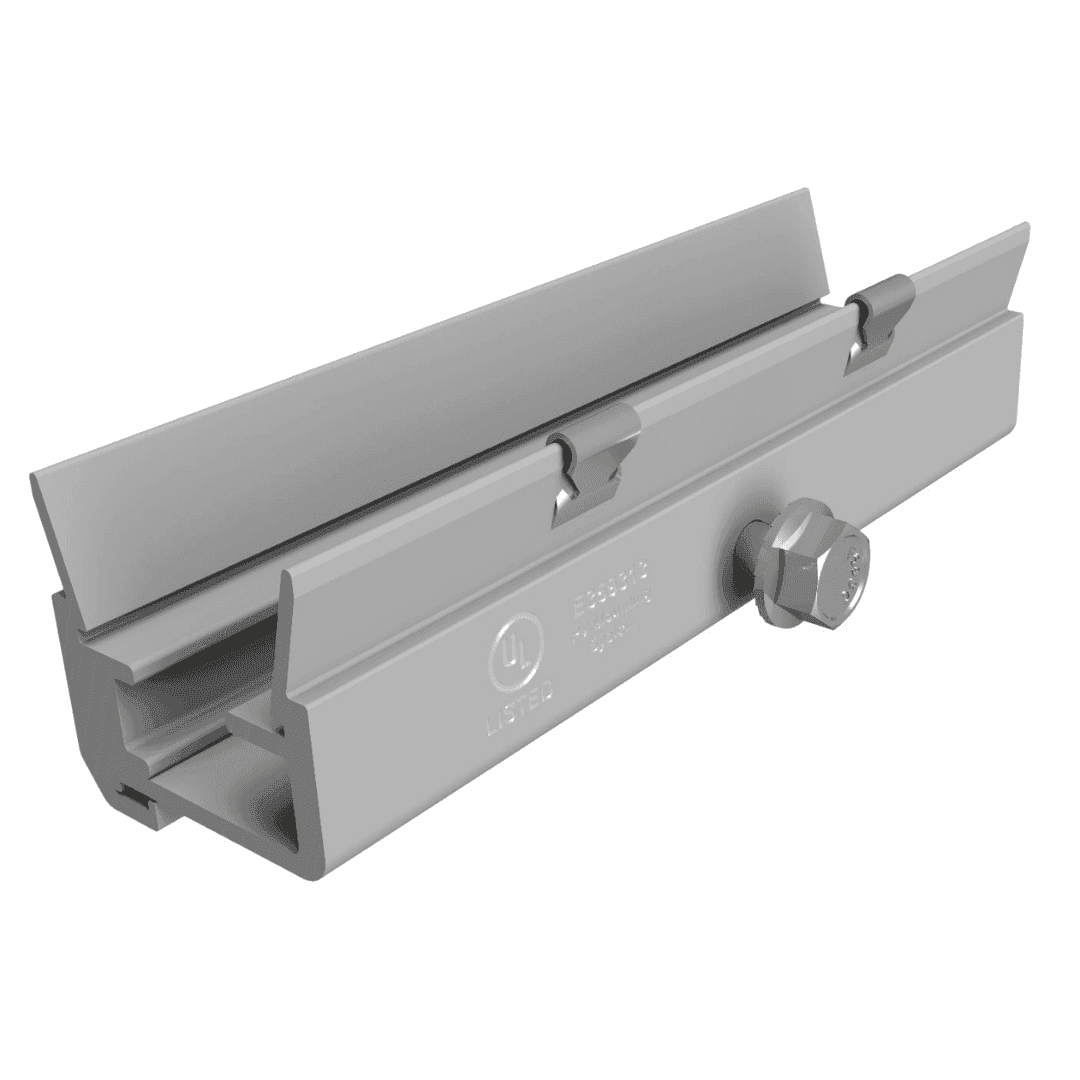

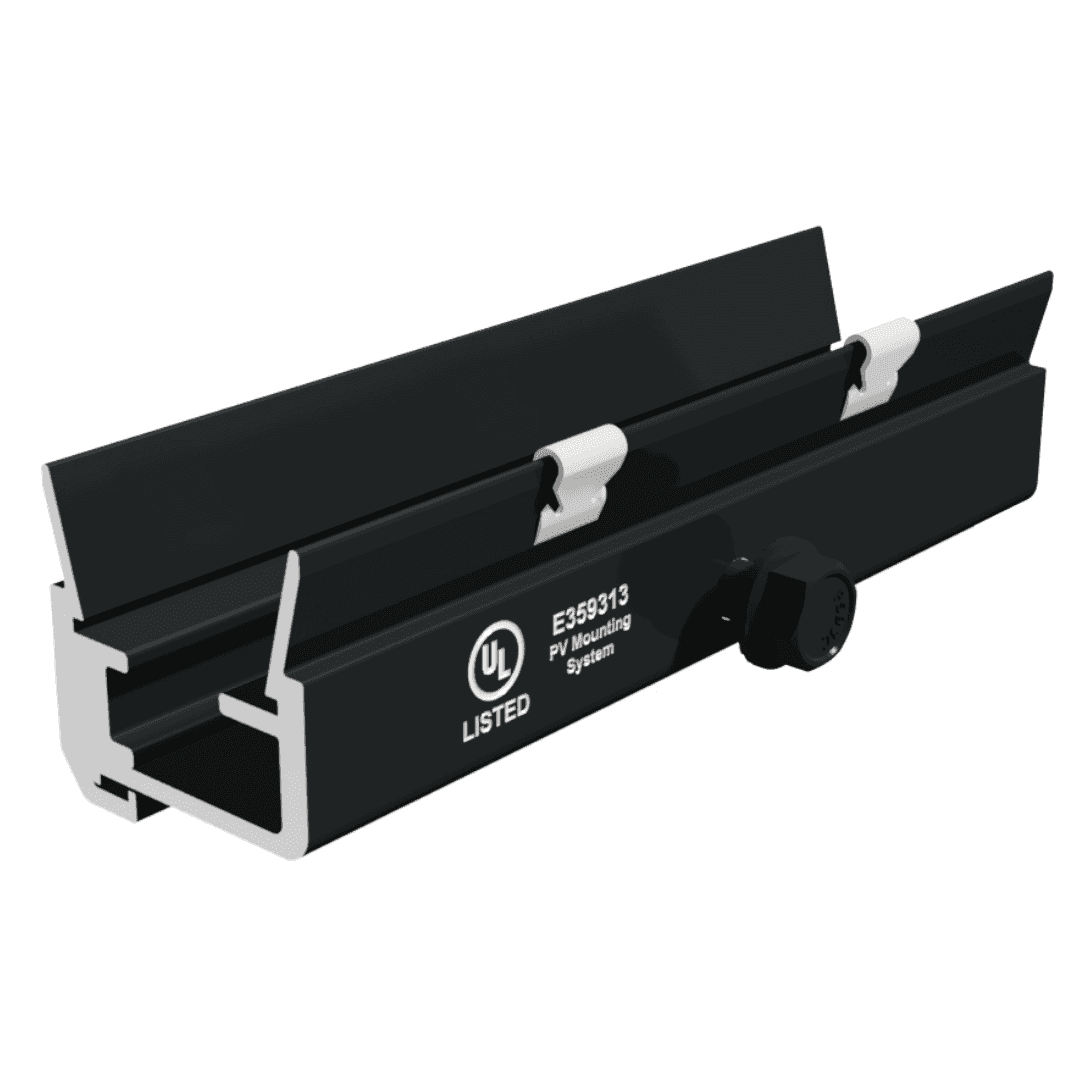

Snap rails into attachments and connect sections with Ultra Rail Splices, maintaining proper gaps for thermal expansion.

Level rails using string lines or spare rails to ensure consistent pitch and alignment.

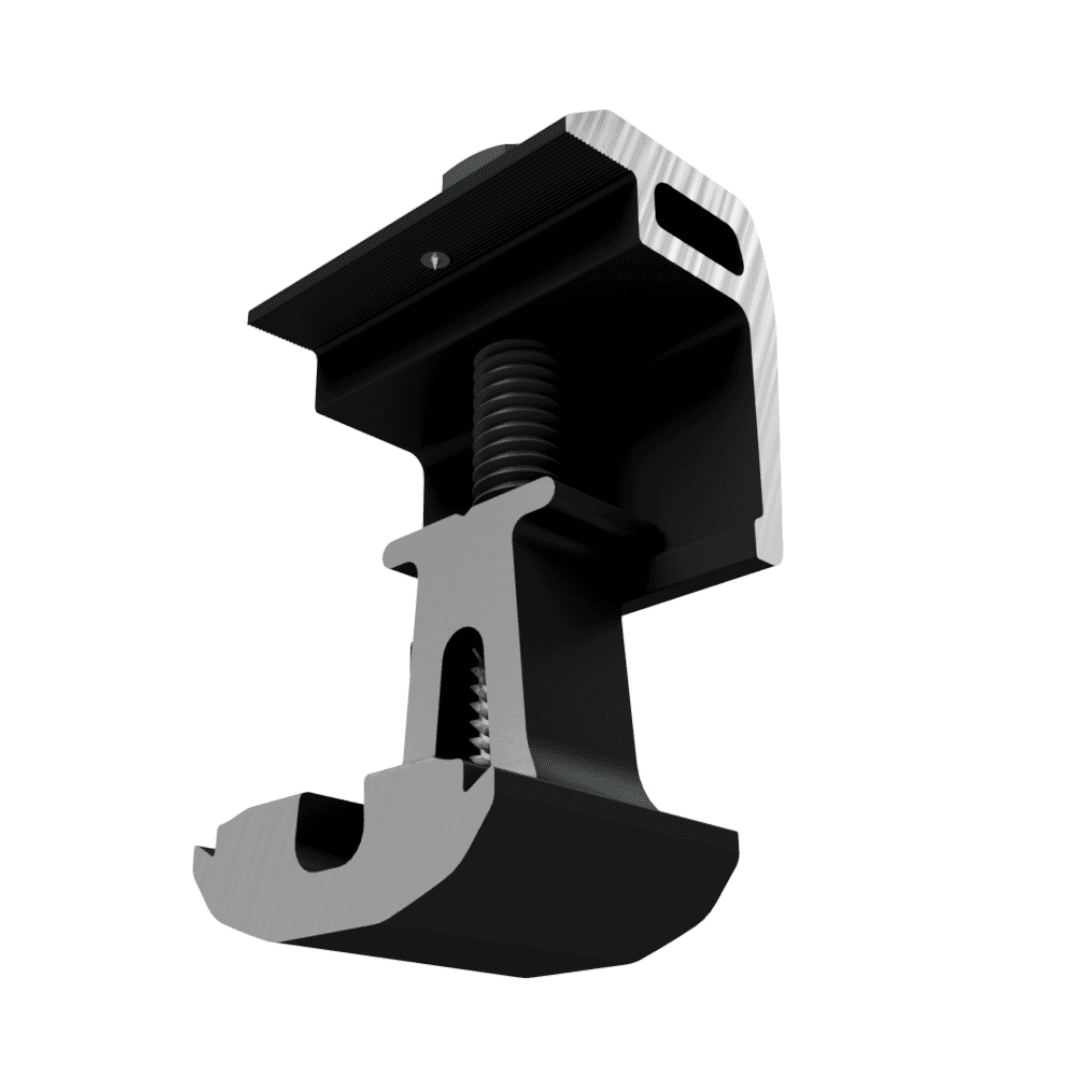

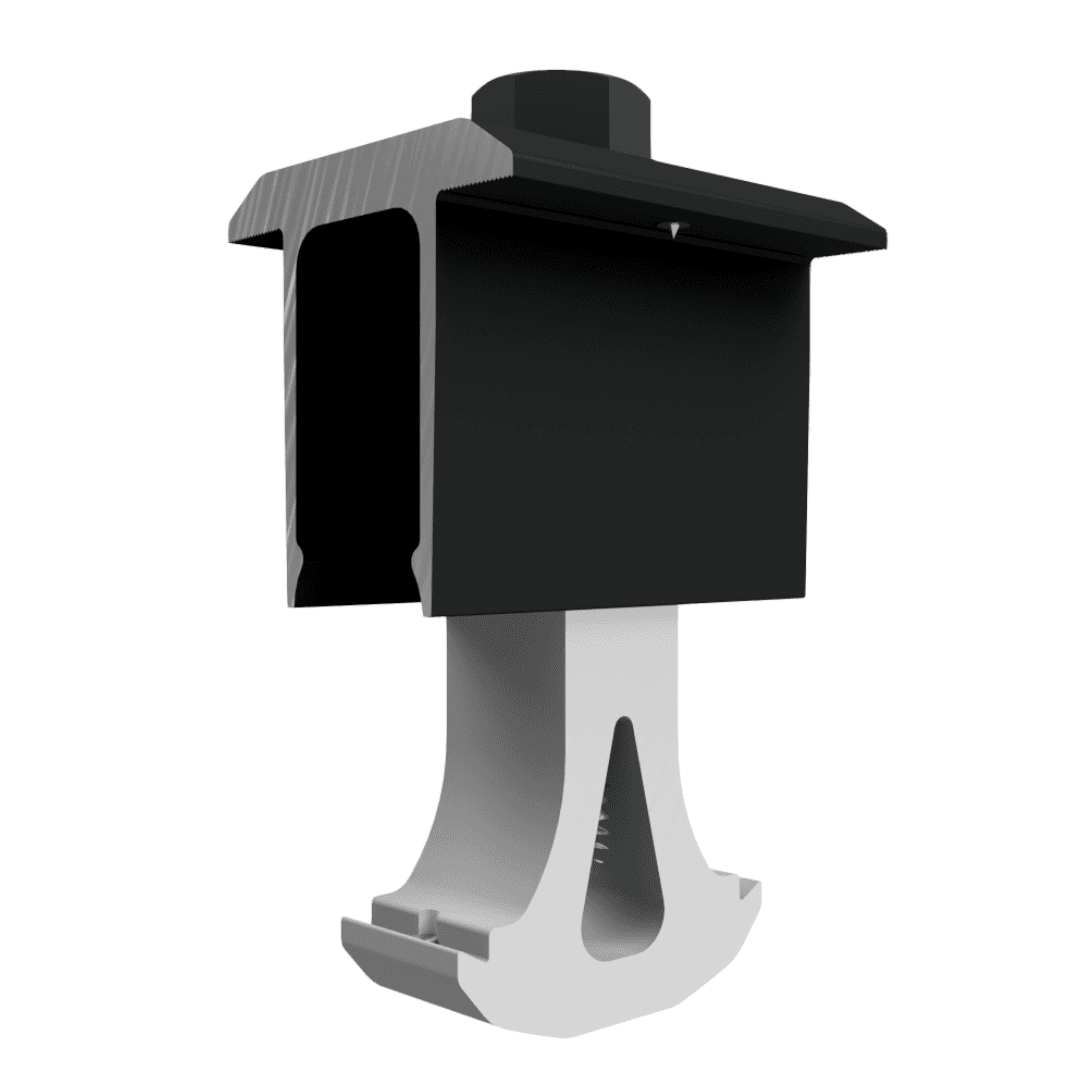

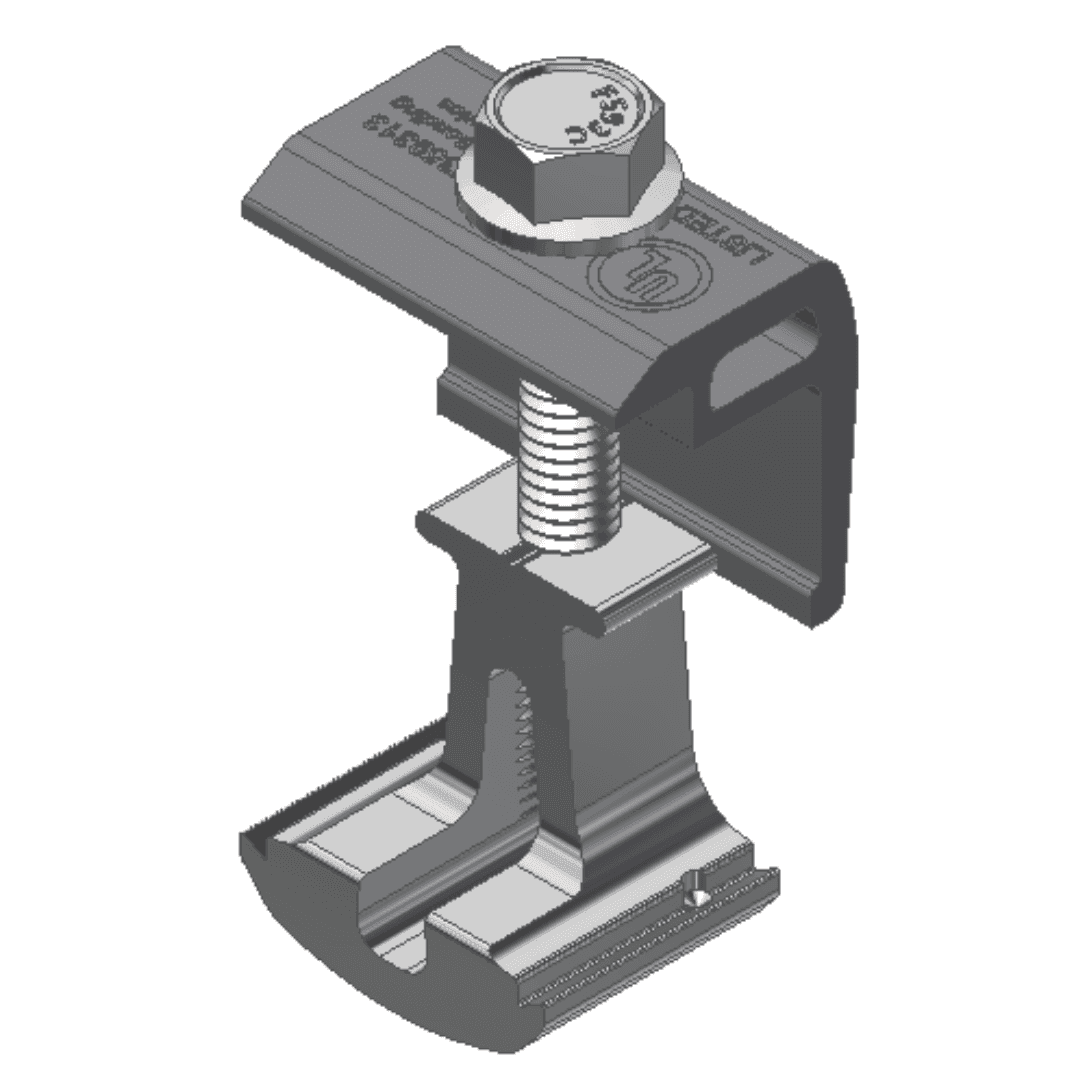

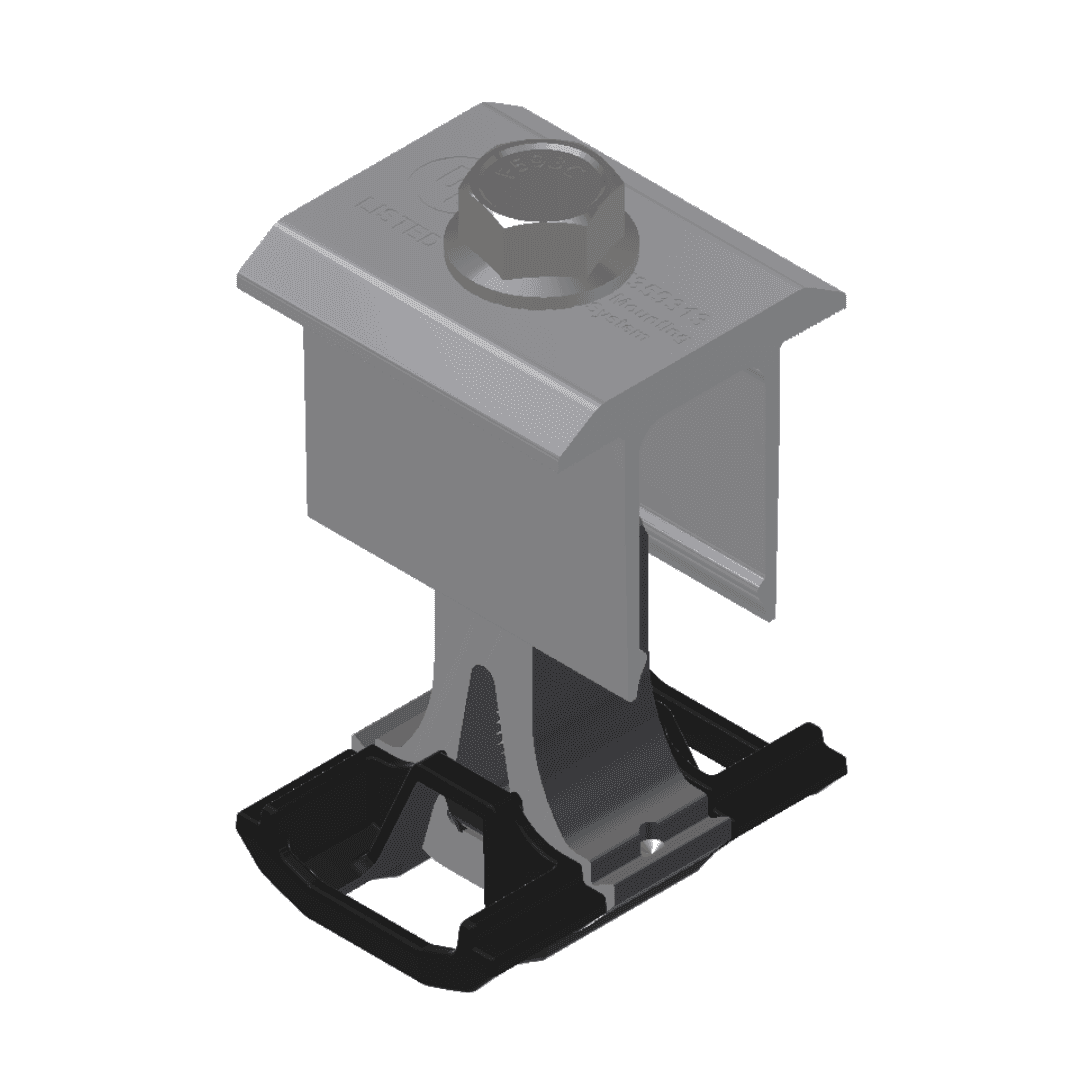

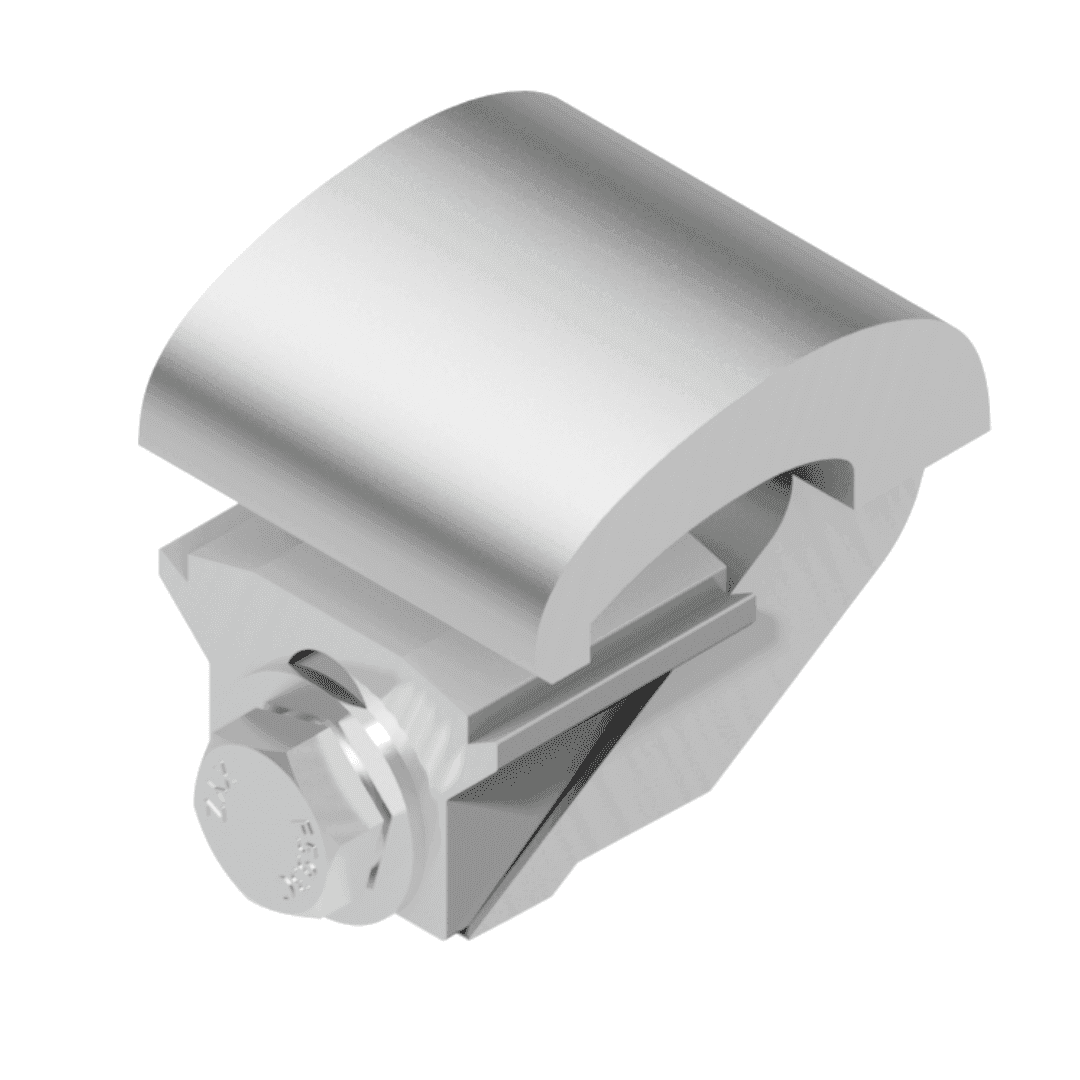

Attach modules with Mid Clamps and End Clamps, tightening hardware to specified torque values.

Complete wire management within the rail channels for a clean, professional finish.

The Ultra Rail 45 System is engineered for fast installs, long-term durability, and adaptability to evolving residential solar needs.
