Wire Management

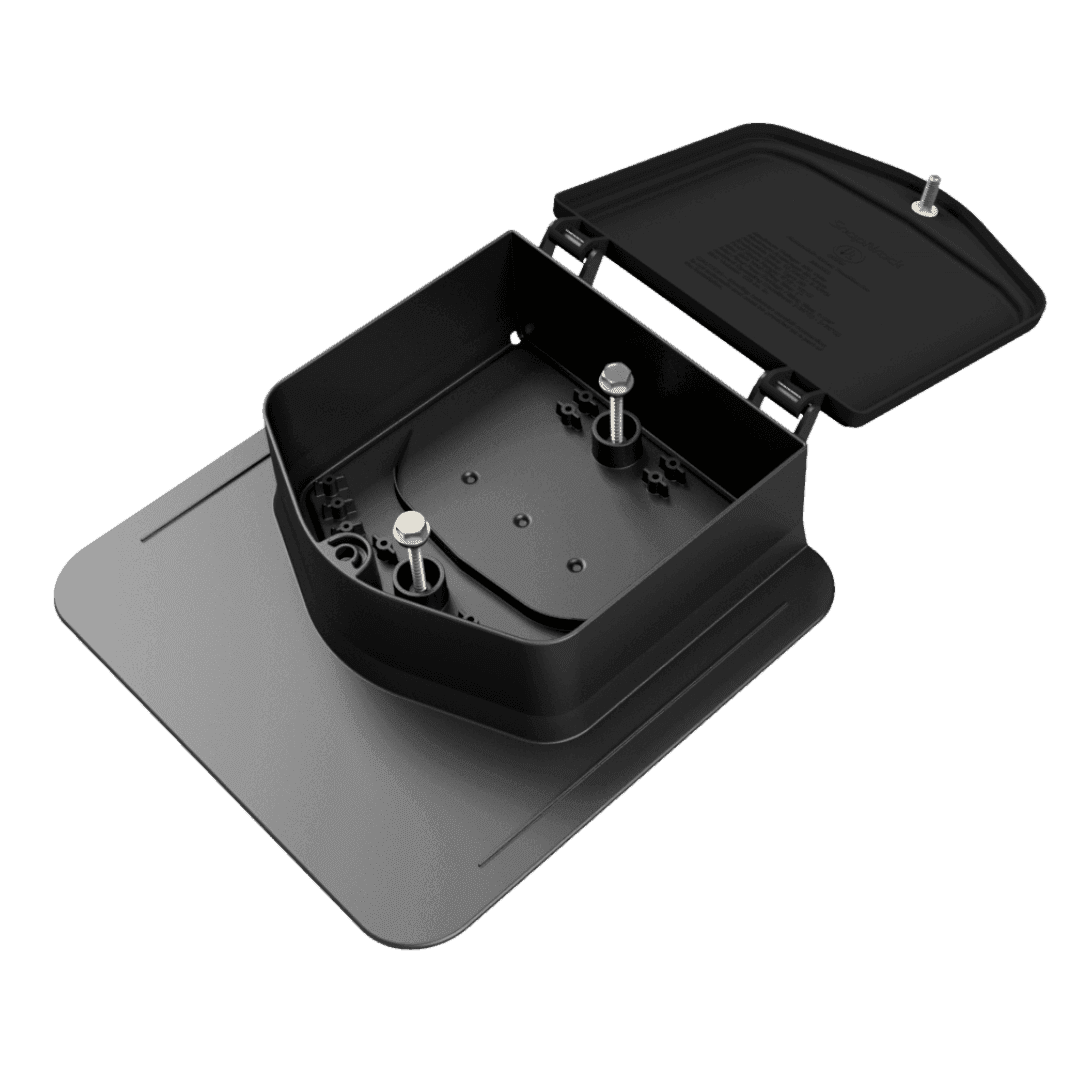

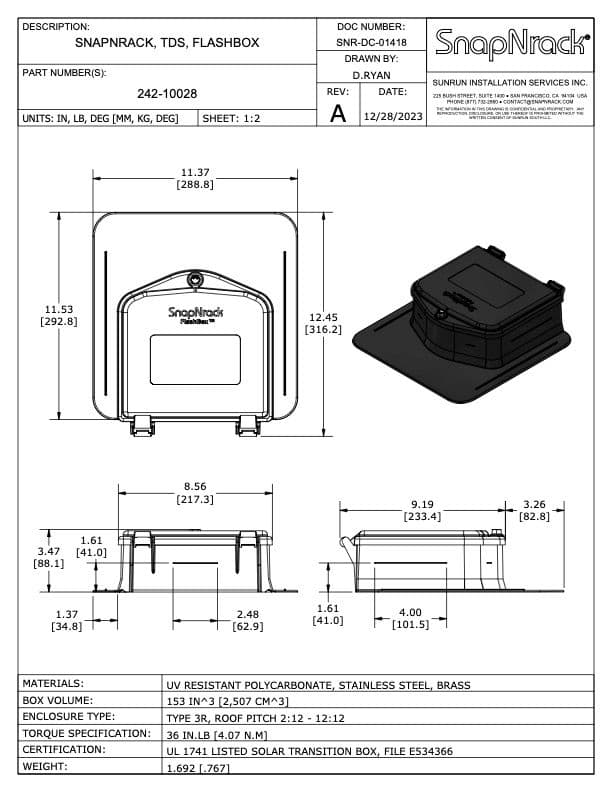

SnapNrack’s FlashBox™ (SKU: 242-10028) is a flashing-integrated junction box designed for comp shingle roofs. It delivers a clean, secure, and fully sealed solution for routing conduit through the roof deck—no guesswork, no leaks. Built for compatibility with Ultra Rail, TopSpeed™ Original, and TopSpeed™ Universal, the FlashBox simplifies wire entry with installer-friendly features like the integrated “Racetrack” seal, precise fit, and a torque-to-spec lid bolt for long-lasting protection. ✅ Clean, waterproof conduit entry point ✅ Integrated flashing ✅ Works with SnapNrack railed and railless systems ✅ Kit includes all hardware for a fast install ✅ Internal Wiring Kit available separately (SKU: 242-10048)

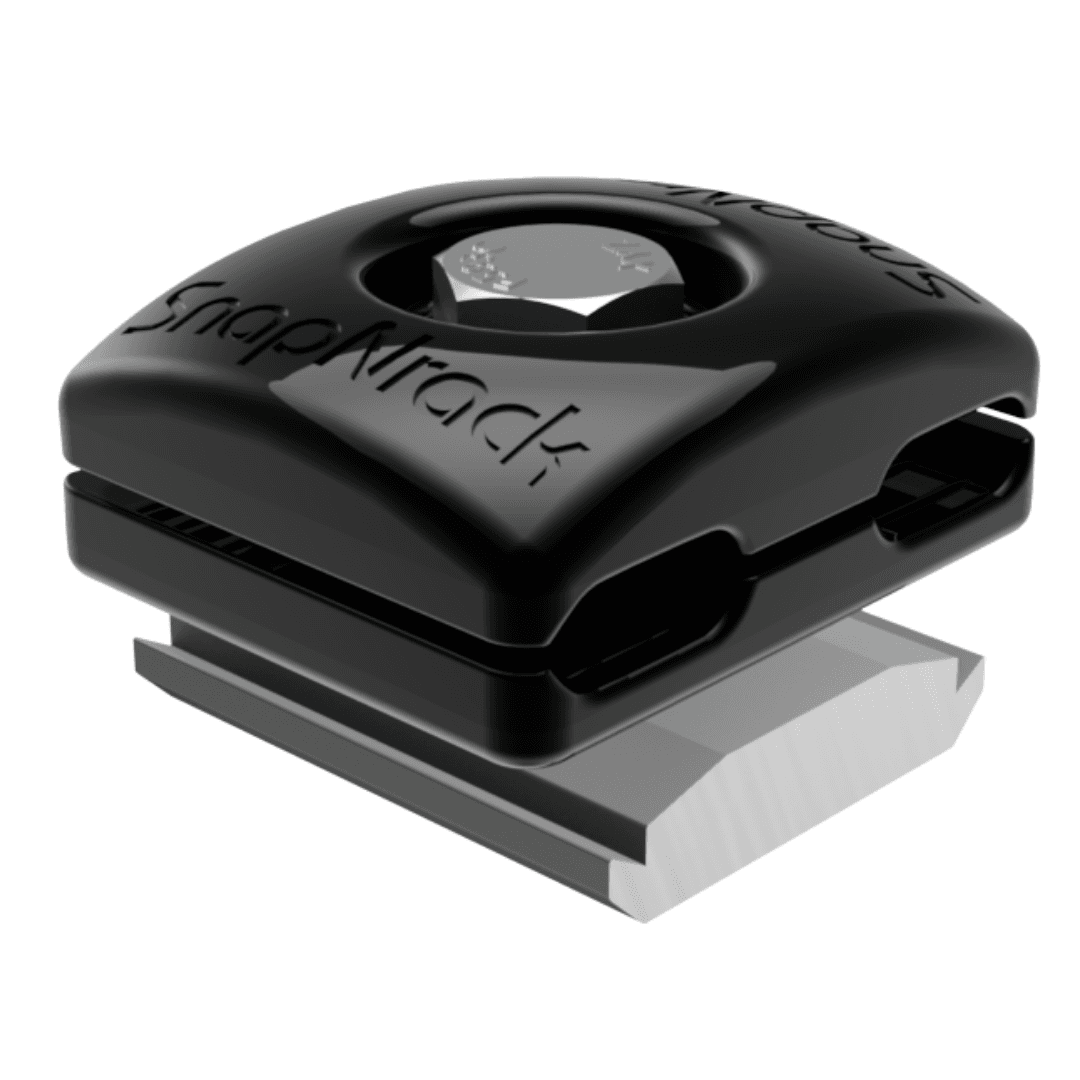

#### Secure your homeruns. Clean up your install. The SnapNrack Universal Wire Clamp R is built to keep PV wiring tight, organized, and off the roof. Designed for use with Ultra Rail systems, this clamp snaps directly into the rail channel and locks wires in place with a single bolt—no extra hassle, no loose ends. Ideal for homeruns and trunk cable management, this clamp is designed to be used one per row, giving installers a simple, repeatable way to manage wire runs across the array. - Secures up to 4 PV wires or 2 trunk cables - Keeps wires elevated and protected from abrasion - Prevents sagging for a cleaner, more professional install - Allows connectors to be tucked neatly under hardware

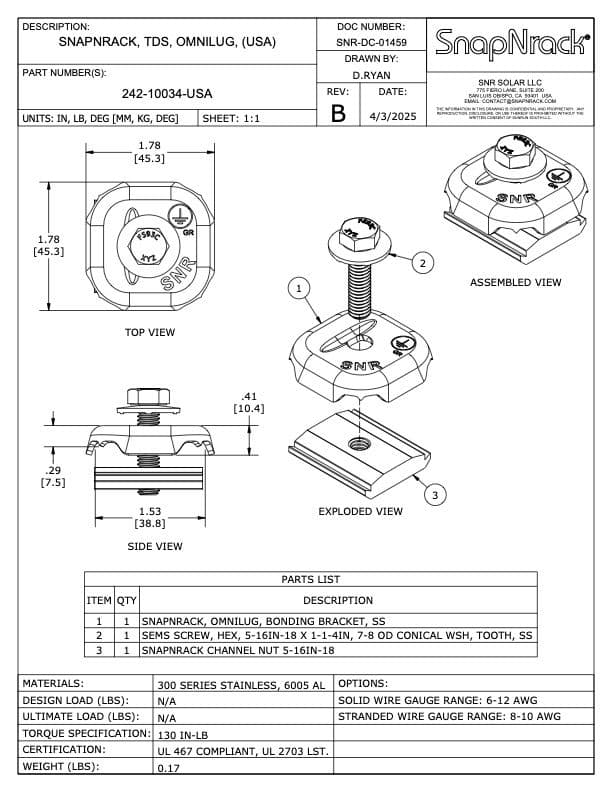

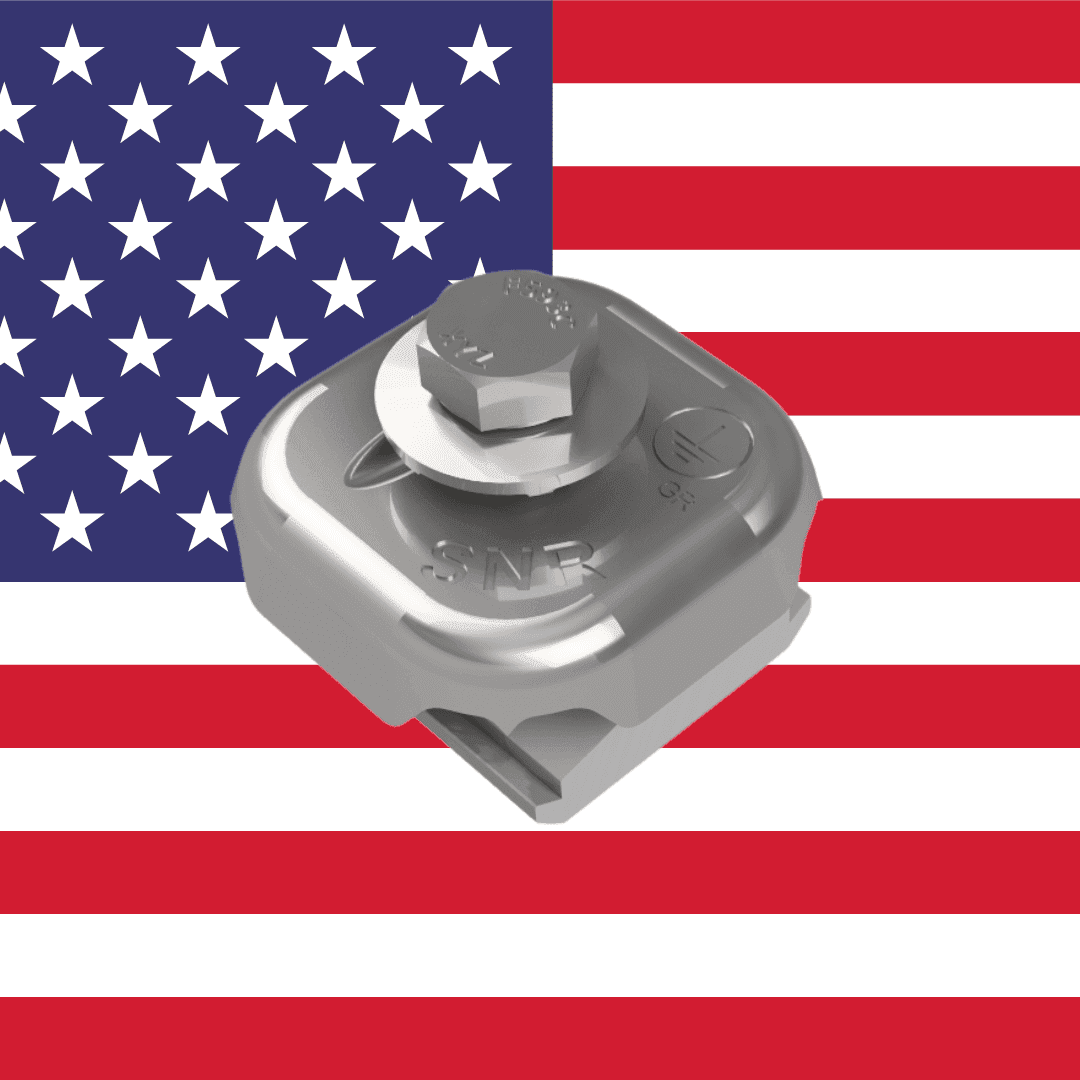

The SnapNrack OmniLug™ (USA) (SKU: 242-10034-USA) provides the same versatile, dual-purpose performance as the standard OmniLug™ while meeting USA domestic content standards for solar installations. This SKU is specifically designed for projects requiring compliance with domestic manufacturing requirements. Note on Usage: While the OmniLug™ is a multi-functional component, it must be used for only one purpose per unit. Each unit must be dedicated strictly as a grounding lug or as an MLPE attachment to ensure a safe and code-compliant installation. Dedicated Functionality - Option 1: Grounding Lug: The stainless steel bonding bracket features a specialized divot on the top surface designed to cradle copper wire. Simply lay the wire in the divot and tighten the bolt to secure the electrical bond. - Option 2: MLPE Fastener: The OmniLug™ also serves as a robust mounting point for microinverters and other Module Level Power Electronics (MLPE). To install, slide the mounting slot of the microinverter around the bolt and fasten it down to the rail.

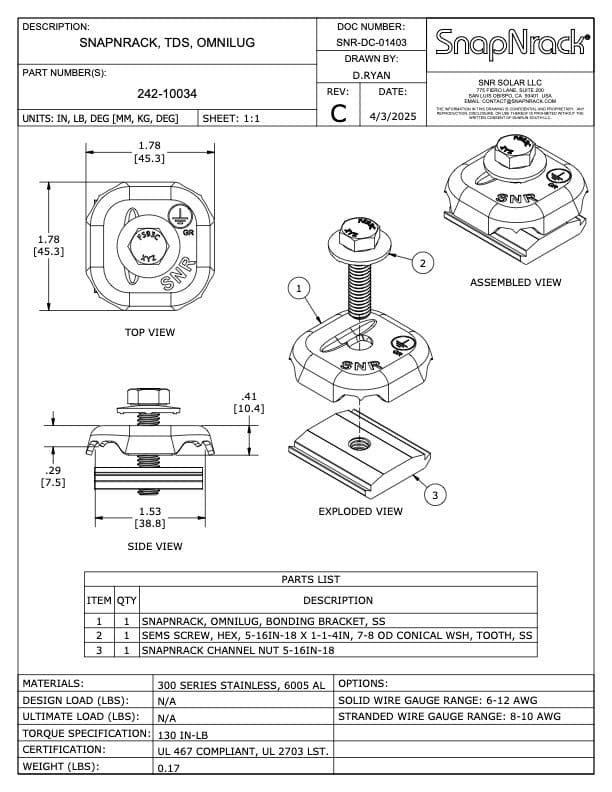

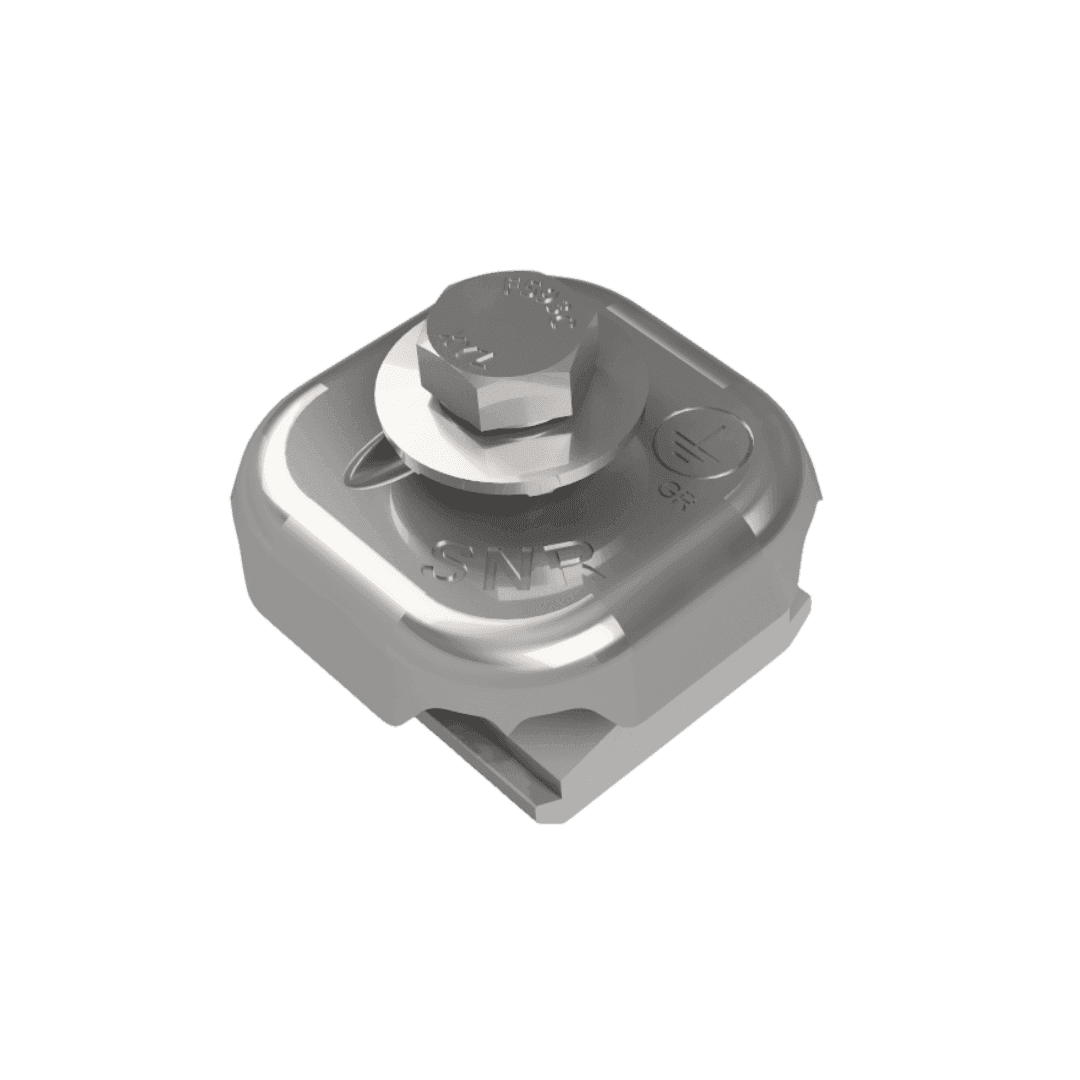

The SnapNrack OmniLug™ (SKU: 242-10034) is a versatile, dual-purpose solar component designed to simplify both grounding and equipment mounting. By integrating multiple functions into a single SKU, it streamlines inventory and speeds up installation on the roof. Note on Usage: While the OmniLug™ is a multi-functional component, it must be used for only one purpose per unit. Each unit must be dedicated strictly as a grounding lug or as an MLPE attachment to ensure a safe and code-compliant installation. Dedicated Functionality - Option 1: Grounding Lug: The stainless steel bonding bracket features a specialized divot on the top surface designed to cradle copper wire. Simply lay the wire in the divot and tighten the bolt to secure the electrical bond. - Option 2: MLPE Fastener: The OmniLug™ also serves as a robust mounting point for microinverters and other Module Level Power Electronics (MLPE). To install, slide the mounting slot of the microinverter around the bolt and fasten it down to the rail.

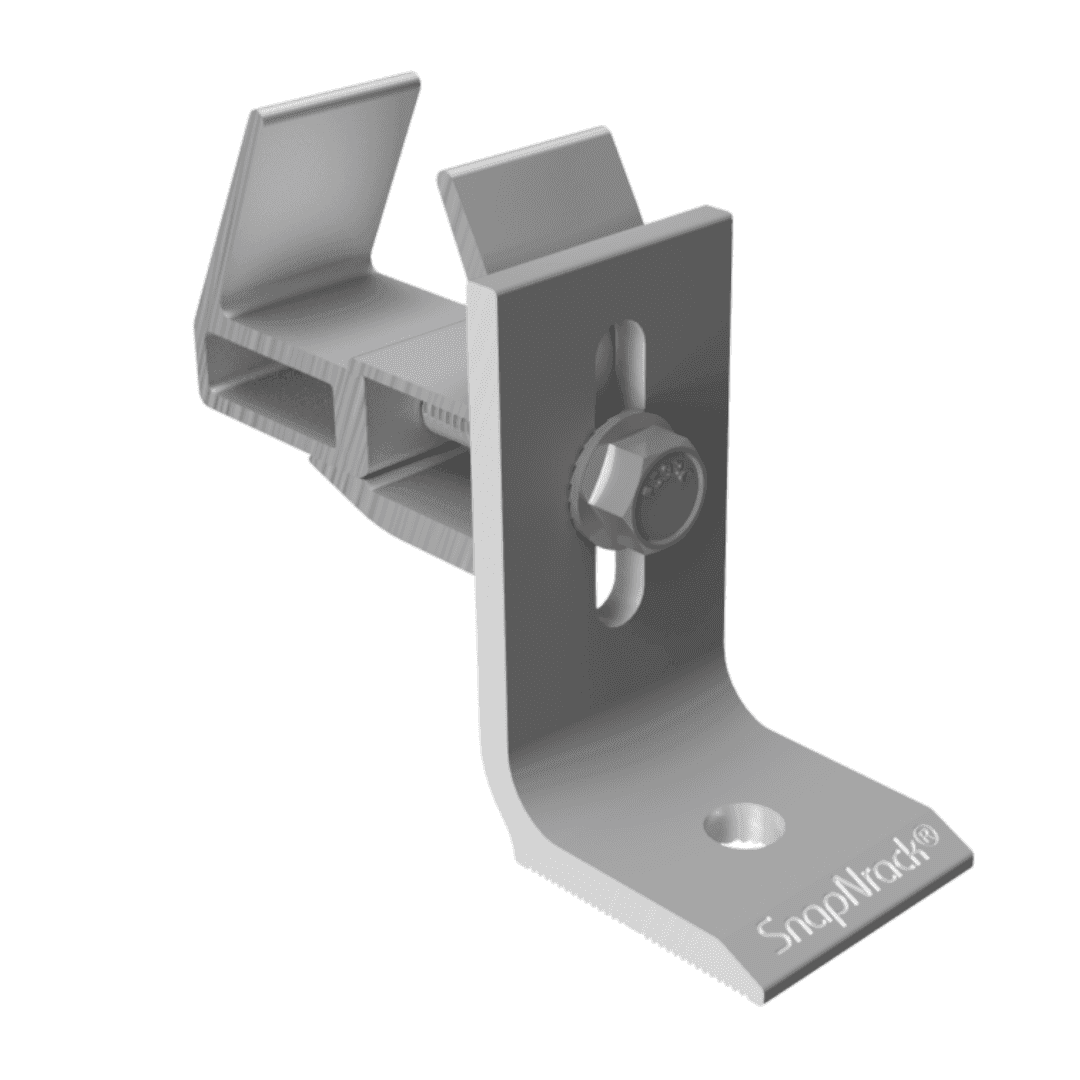

The SnapNrack Universal Conduit Mount, L Foot (Part Number 242-10051) is a flexible mounting solution designed to secure conduit across solar arrays. Unlike standard roof mounts, this variation is specifically engineered for adaptability, allowing it to be integrated into existing rail systems or other mounting hardware rather than being fastened directly to the roof. Key Features: - Versatile Adaptability: Features an integrated AP90 L Foot II with a 1.25" slot, making it easy to attach to rails or other solar mounting components. - Broad Conduit Compatibility: Supports both 3/4" and 1" EMT, as well as 3/4" and 1" PVC conduit types. - Durable Hardware: Constructed from 6000 series aluminum and stainless steel, ensuring durability in exposed outdoor environments. - Simple Fastening: To secure the conduit, place it within the clamp and tighten the 5/16"-18 x 1-1/2" stainless steel serrated flange bolt.

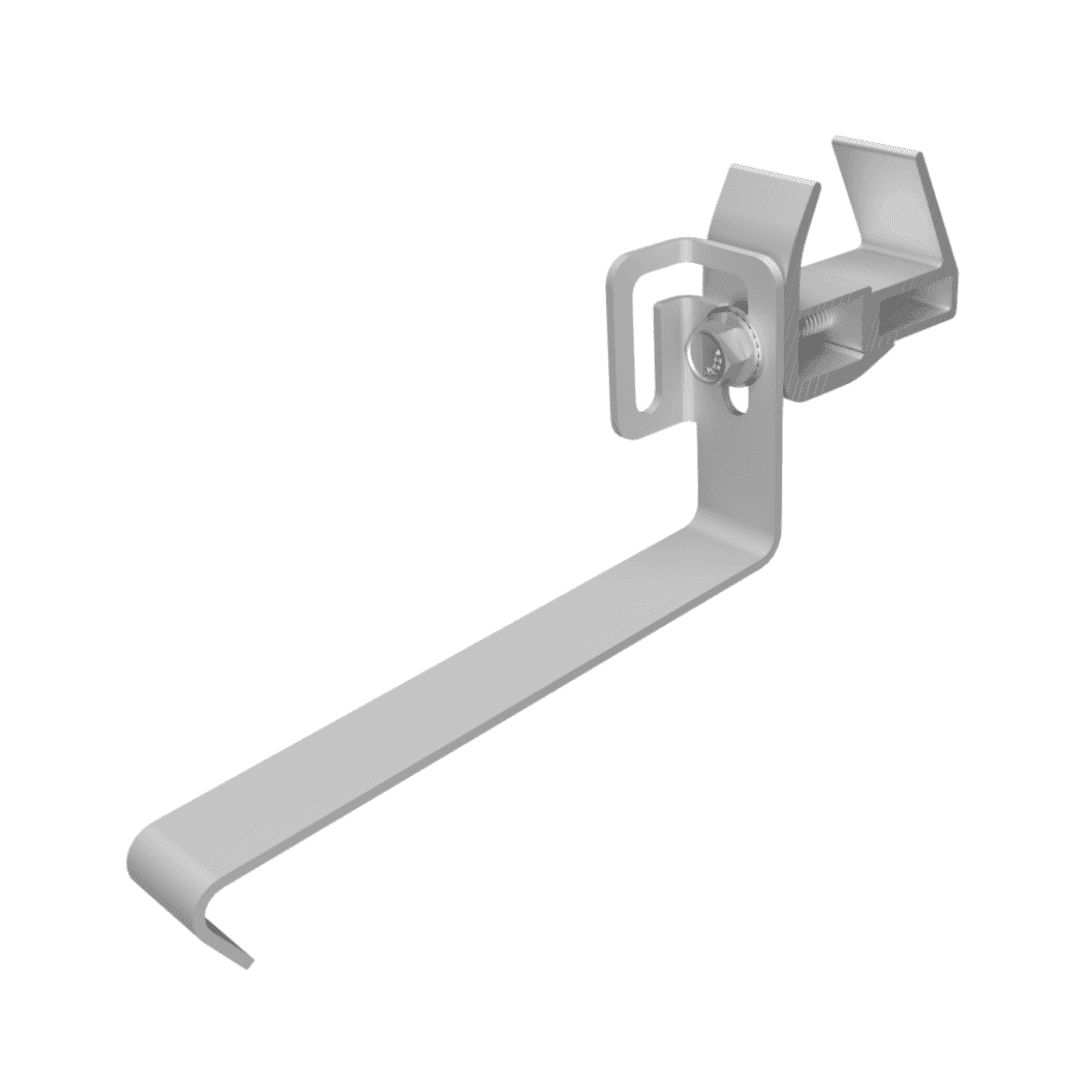

SnapNrack’s Universal Conduit Mount for Tile (SKU: 242-10052) gives installers a fast, secure way to attach conduit to tile roofs—without drilling into tile or roof deck. Designed to hook over tiles, this mount keeps conduit elevated, aligned, and out of sight. Compatible with Ultra Rail systems, it maintains code compliance while delivering a streamlined, professional look. - No additional roof penetrations required - Clean conduit runs over tile roofs - Compatible with standard ¾" and 1" conduit clamps - Works seamlessly with Ultra Rail systems

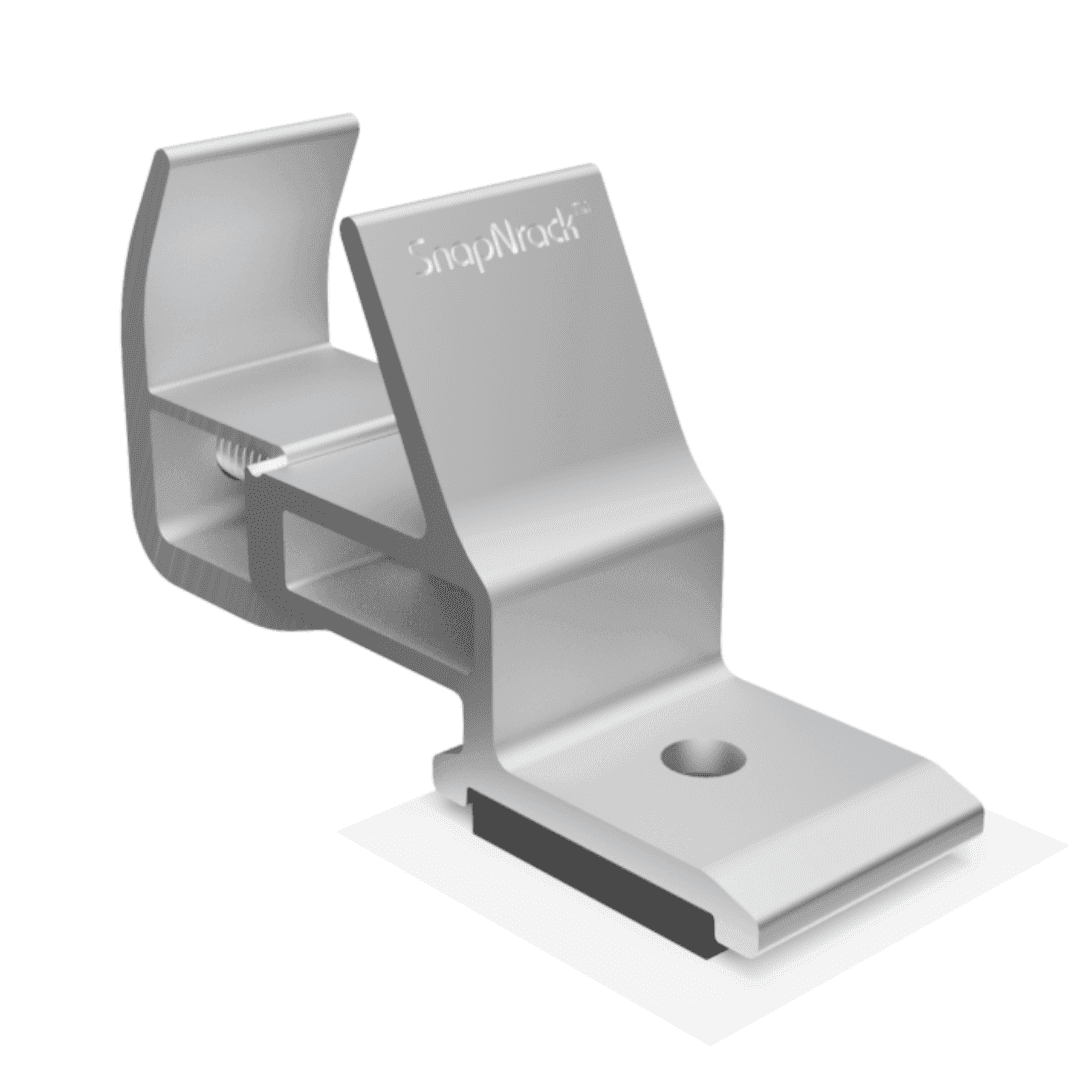

The SnapNrack Universal Conduit Mount, Simple is a streamlined solution for securing conduit to roofs in solar installations. Designed for efficiency and durability, this mount is suitable for composition shingle roofs and compatible with 3/4" or 1" conduit. Key Features - Simple Installation: The mount features a peel-and-stick butyl backing (SpeedSeal+ Technology) for immediate waterproofing. - Robust Hardware: Each kit includes a #14 x 2-1/4" stainless steel wood screw with a sealing washer to secure the mount directly to the roof structure. - Simple Fastening: To secure the conduit, simply place it in the clamp and tighten the 5/16"-18 x 1-1/2" serrated flange bolt.

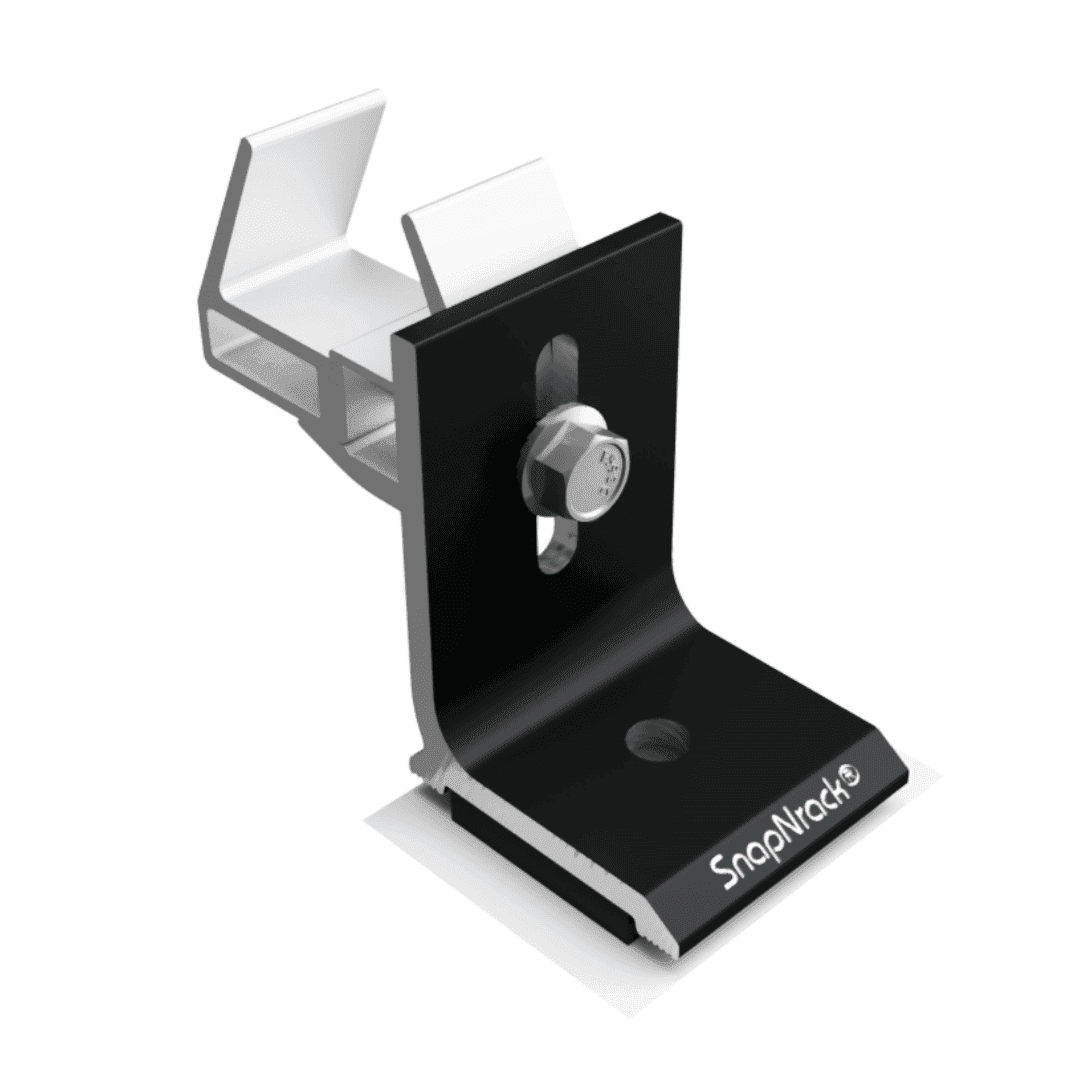

The SnapNrack Universal Conduit Mount, Leveling (SKU: 242-10059) offers a high-performance mounting solution that combines the versatility of a universal conduit clamp with the industry-leading UltraFoot Rafter base. Designed for speed and reliability, this mount features integrated SpeedSeal+ technology to streamline roof attachments. Key Features - SpeedSeal+ Technology: The mount comes with a preassembled 2.00" x 1.44" butyl pad, allowing for a simple peel-and-stick application that eliminates the need for separate sealants. - Universal Conduit Support: Securely holds multiple conduit types and sizes, including 3/4" EMT, 1" EMT, 3/4" PVC, and 1" PVC. - Adjustable Leveling: Features an integrated slot on the mounting arm with 1.25" of travel, allowing for precise height adjustments and alignment of conduit runs. - All-in-One Kit: Every mount includes a #14 x 2-1/4" stainless steel sealing washer wood screw for direct attachment to the roof rafter.
